Product catalogue

Used in combination with profiled beams as a holder for mounting crossbars composed of Sikla Channels or other standard profiles.

For fixing pipes up to a nominal diameter of NB50 directly to ceilings made of trapezoidal corrugated sheet according to VdS/FM standards or as single point mounting solution. In cases where VdS or FM regulations are not applicable or in cases of ventilation systems, larger loads may be fixed via crossbars and by an appropriate number of toggle studs. By turning the threaded rod, it is possible to make height adjustments. This threaded rod is secured and cannot be unscrewed completely. The Hypalon washer is weather-resistant and thus a crucial safety factor when sealing the mounting bore.

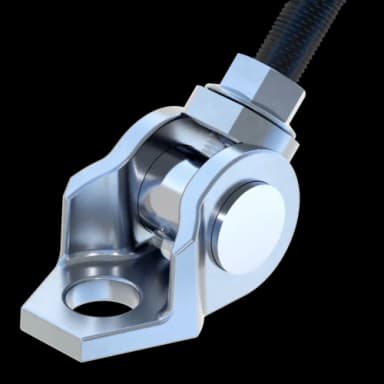

Universal connection for attachment to non-horizontal components. May be fixed directly to building surfaces, Beam Clamps, channels, etc. Typical uses would include easy on-site manufacture of various tie rod assemblies to support brackets, or reinforcement struts for sliding and fixed point applications (UG FP types are specifically designed for assembly for pipe clamp wings for fixed point constructions). Infinitely variable angle adjustment. Length and height adjustment via rotation of the grub screw in the threaded pivot head. Securely retained threaded pivot head. Secure attachment of nut on the adapter plate.

Universal connection for attachment to non-horizontal components, allowing infinitely variable angle adjustment. May be fixed directly to the building surfaces, Beam Clamps, channels, etc. Typical uses would include easy on-site manufacture of various tie rod assemblies to support brackets, or reinforcement struts for sliding and fixed point applications: Infinitely variable angle adjustment. Length and height adjustment via rotation of the grub screw in the threaded pivot head. Pivot head caulked, prevents from falling out.

Universal connection for attachment to non-horizontal components. May be fixed directly to building surfaces, Beam Clamps, channels, etc. Typical uses would include easy on-site manufacture of various tie rod assemblies to support brackets, or reinforcement struts for sliding and fixed point applications (UG FP types are specifically designed for assembly for pipe clamp wings for fixed point constructions). Infinitely variable angle adjustment. Length and height adjustment via rotation of the grub screw in the threaded pivot head. Securely retained threaded pivot head. Secure attachment of nut on the adapter plate.

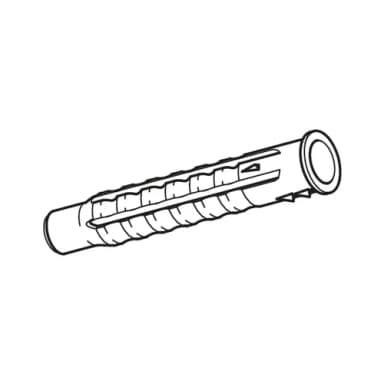

The Universal Plug with collar is suitable for all concrete material and masonry, perforated and hollow bricks, boards. The torsion protection prevents rotation in the drill hole. The installation in cavities causes a knot and therefore an interlocking connection. The stiff plug neck prevents damage of tiles and plaster. The collar serves as stop an prevents the plug from slipping deeper into the drill hole.
