27-37

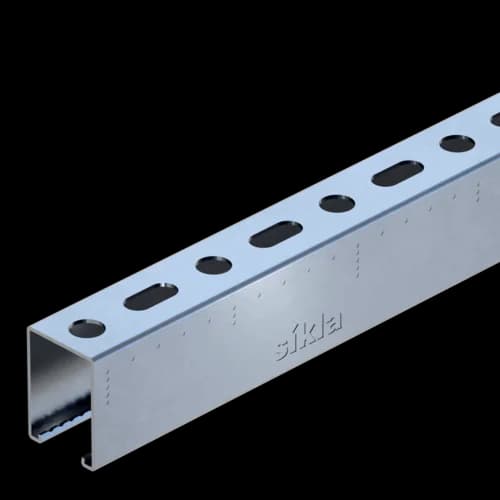

Channel MS 27 A4

Group: 1711

For simple and professional manufacturing of crossbars, wall brackets and support frames

Suitable for on-site assembly and pre-fabrication

Select a Type

Overview of Types

For the simple and professional manufacture of crossbars, wall brackets and support frames on the construction site or for pre-assembly.

Certification

Permissible Tension σ{zul}	188,00 N/mm²
Permissible yield strength f_y,perm.	290,00 N/mm²

Material base body	Stainless Steel A4
Corossion class	CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2)

Type	V_Z,perm.
MS 27/15/1,25 2M A4	1,50 kN

Type	M_X,perm.
MS 27/15/1,25 2M A4	0,01 kNm

Type	Resistance torque Wy	Resistance torque Wz	Moment of inertia Iy	Moment of inertia Iz	Radius of inertia iy	Radius of inertia iz
MS 27/15/1,25 2M A4	0,25 cm³	0,64 cm³	0,20 cm^4	0,86 cm^4	0,54 cm	1,13 cm

Type	Cross-section A
MS 27/15/1,25 2M A4	0,67 cm²

Note: All values refer to slotted channels.

All channels of the 41 series are serrated inside and provide numerous combination options with other stainless steel system components.
