Flexible steel fabrication
The siFramo modular system offers 4 high load bearing section sizes from a space saving 80/30 to a wide spanning 100/160 and they can all be combined with one another.
Beam Section TP F80/30
Beam Section TP 80/80

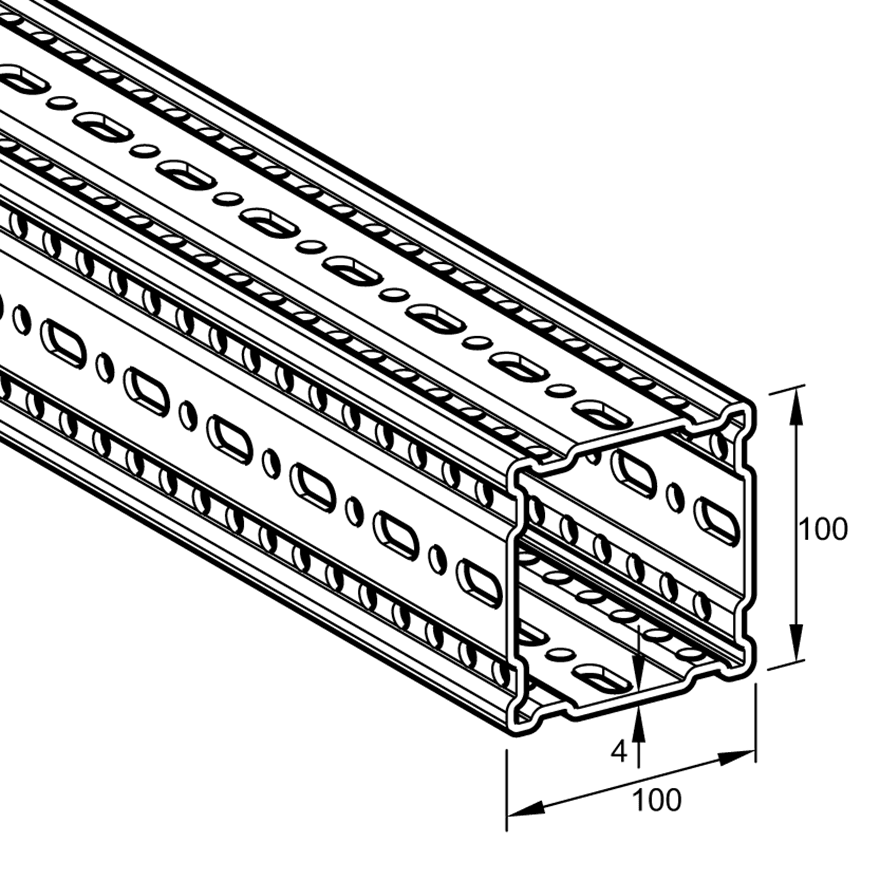

Beam Section TP 100/100

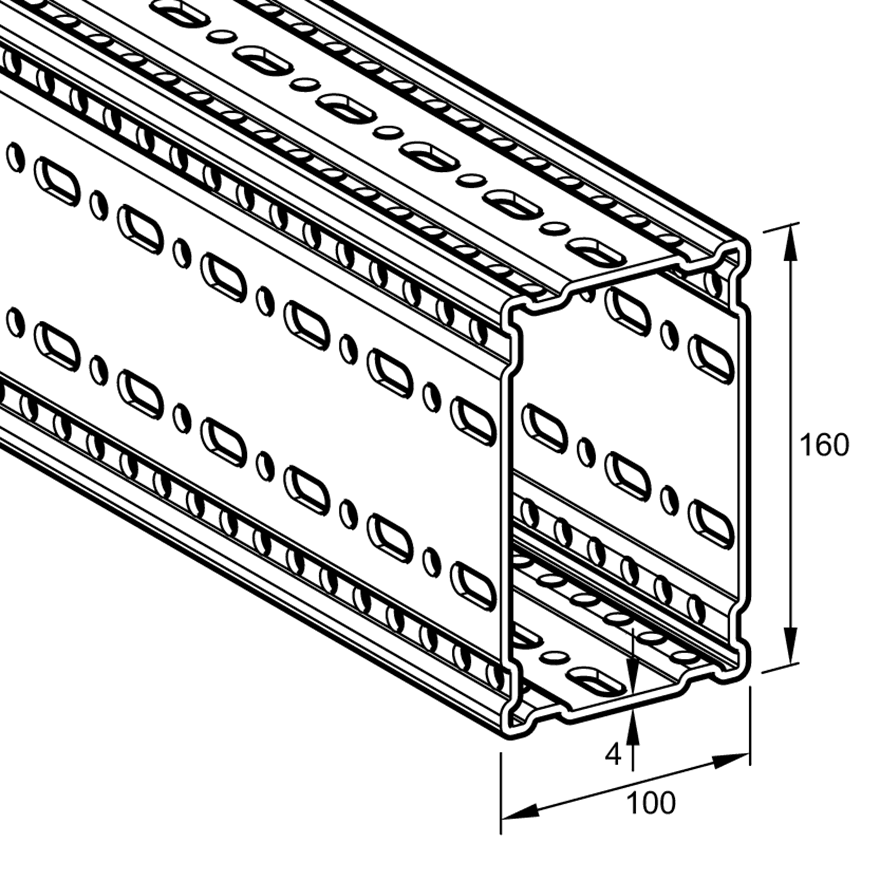

Beam Section TP 100/160

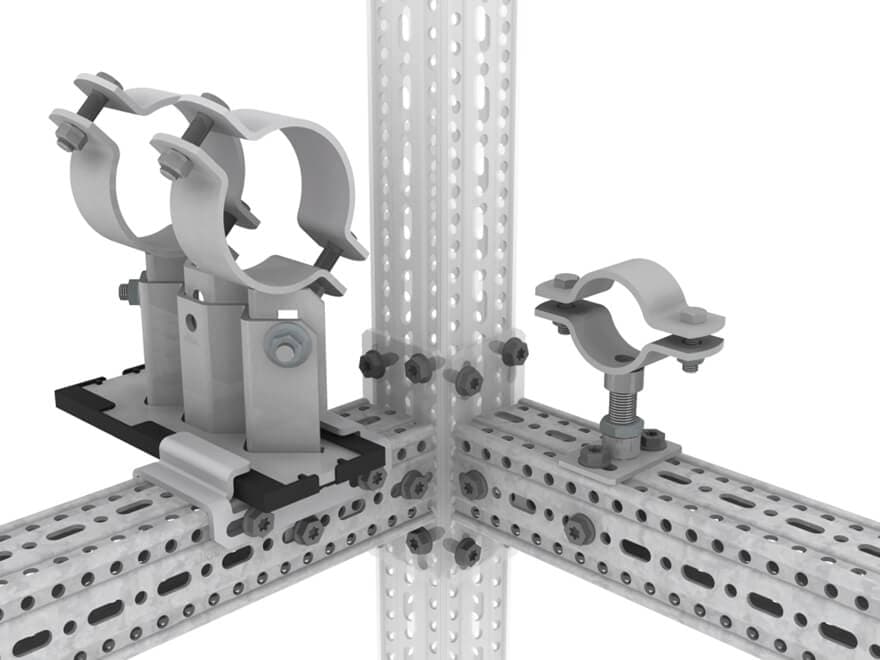

There is a comprehensive range of section attachment accessories, including those for Simotec pipe shoes.
You will find all details of the siFramo system in our e-catalogue.

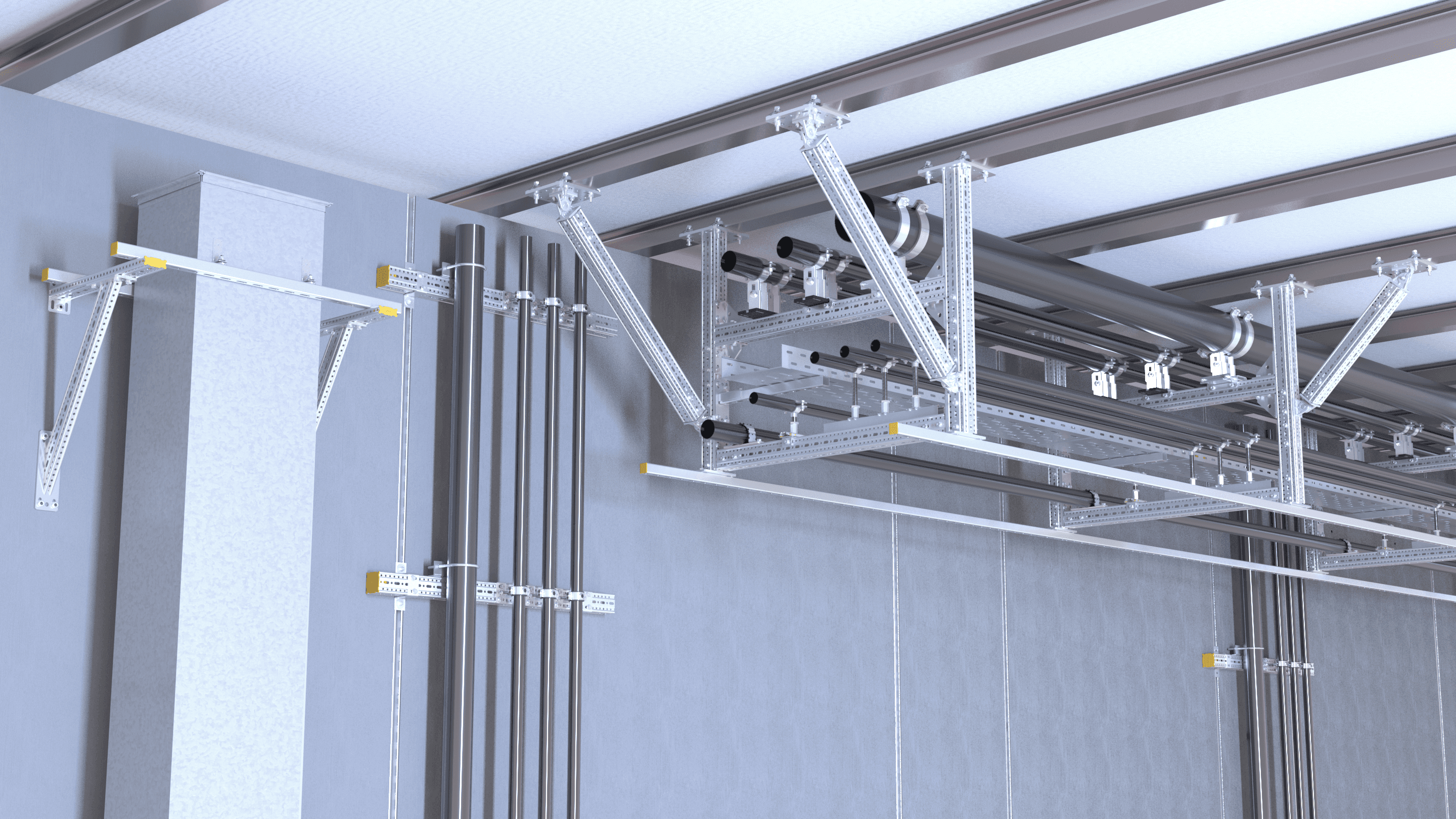

Adaptation to any primary structure
Connections include:
Clamping to steel beam flanges
Welding to primary steel surfaces
fastening to concrete
Non-penetrative foot plates
Stepless component positioning on all 4 sides of the section

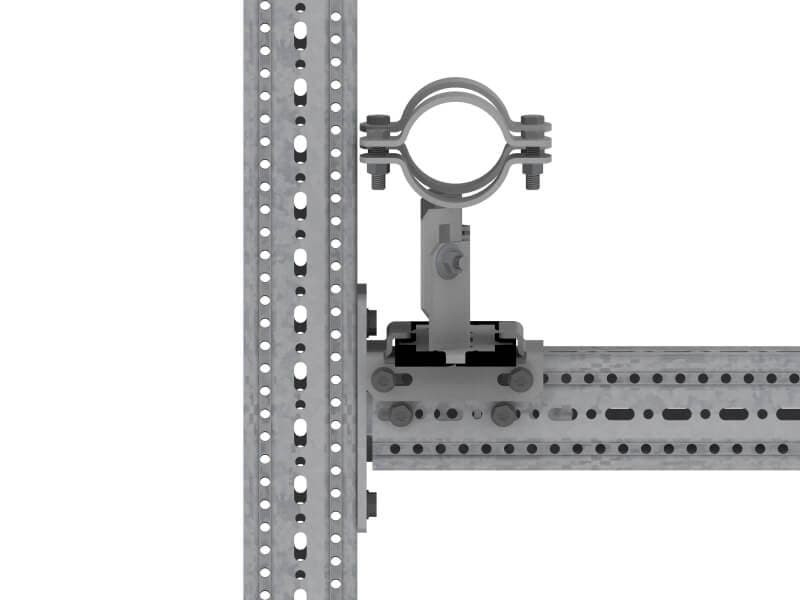

Full utilisation of beam surfaces:
No fastener clashes inside the section
Pipe and cable connections possible right up to the beam / column interface
