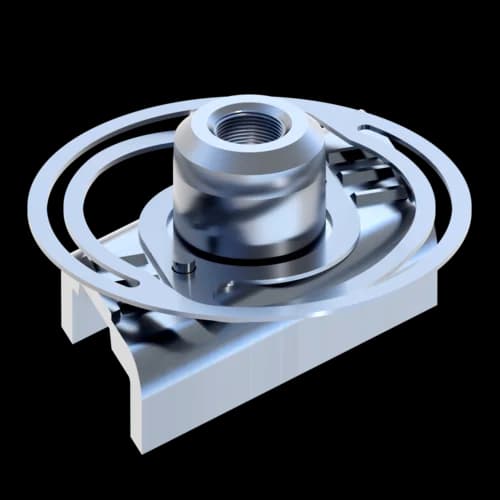

Adapter NT CC41 DIN 3015 A4
Group: 1714
Enables efficient assembly of fastening clamps DIN 3015 (light and heavy series) to stainless steel Channels MS 41
Ideal for vertical channels or hard-to-access positions, replacing the “third hand”
Compatible with all Sikla Channels MS 41; prevents screw heads from sticking and ensures flush fixation after tightening
Overview of Types
General Information
For efficient assembly of fastening clamps DIN 3015 (light and heavy series) to Channels MS 41 in stainless steel. Particularly useable for assembly in vertical channels or positions difficult to access, this piece replaces the '3rd hand' and offers following further advantages: Compatible with all Sikla Channels MS 41, regardless of the channel's height. No getting stuck of screw heads while moving inside the channel. Plane fixation without projecting after tightening.
Certification
Technical specifications
Material base body | Stainless Steel A4 |
Material connecting element | Spring steel, stainless |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Software
This product is available in the following software.
Installation

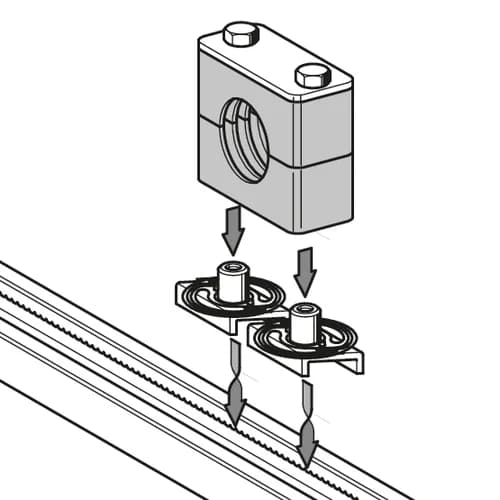

After inserting the Adapter NT CC 41 into the channel opening, slightly press on the thread connection. The piece automatically turns into position. Postion the fastening clamp and tighten the screws.
Neither assembly nor removal require a tool and are repeatable as much as is necessary.
