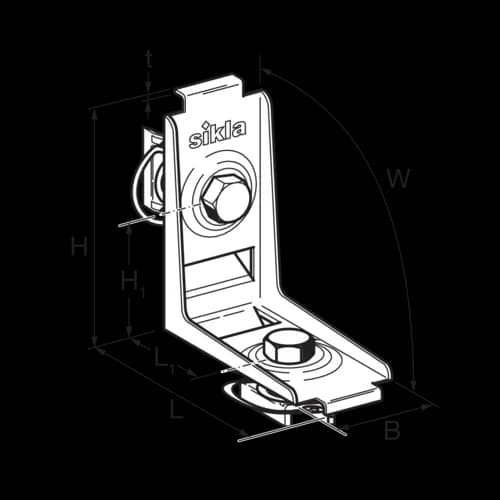

Angle Connector CN CC27 - 90°
Group: 2726
Part number 195772
Complete connecting element for frame constructions made from Channel MS 27
Quick-locking mechanism for 90° junction of CC-27 system, locks automatically by pressing on the screw head
Technical Data
Load range
-VX,perm. | 0,80 kN |
VX,perm. | 0,80 kN |
-VZ,perm. | 0,80 kN |
VZ,perm. | 0,80 kN |
Specification per connector.
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
Tightening torque: 10 Nm
