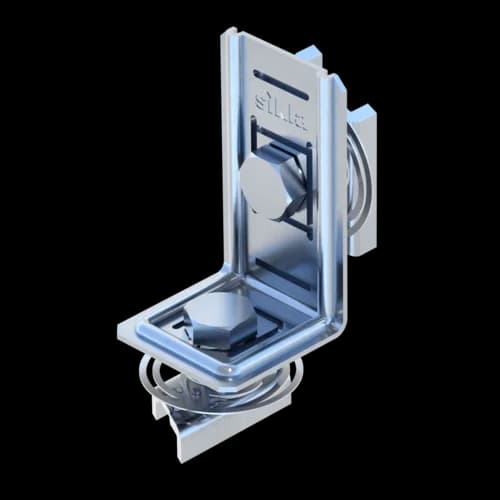

Angle Connector CN CC41
Group: 1326
Pre-assembled connecting element especially for frame structures made of channels

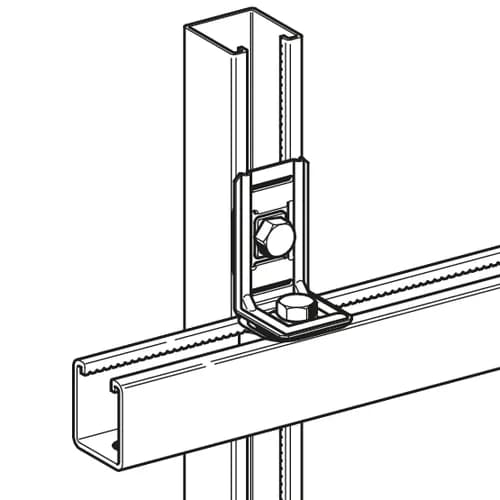

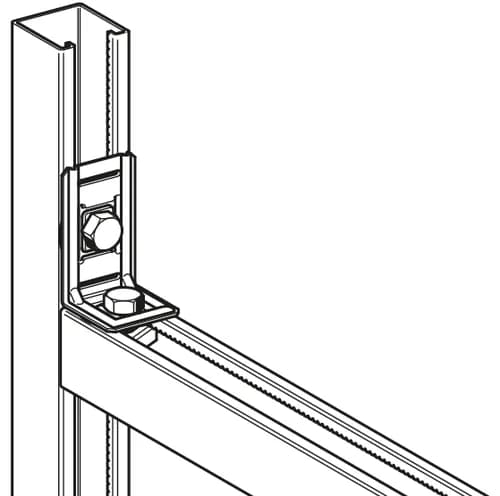

High-speed assembly system for 90° connection of Channels MS 41
Overview of Types
General Information

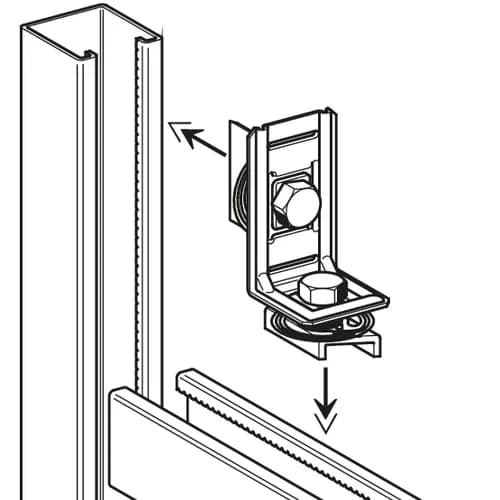

Pre-assembled connecting element especially for frame structures made of channels. High-speed assembly system for 90° connection of Channels MS 41. Locks automatically by pushing down the bolt head and at the same time supports its own weight. Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping for high stiffness.
Certification
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VX,perm. | VX,perm. | -VZ,perm. | VZ,perm. |
CN CC41 - 90° | 4,00 kN | 4,00 kN | 4,00 kN | 4,00 kN |
Working load as axial load per crossbar with 2 CC Angle Connectors 90°.
Software
This product is available in the following software.
Installation
Tightening torque: 40 Nm
