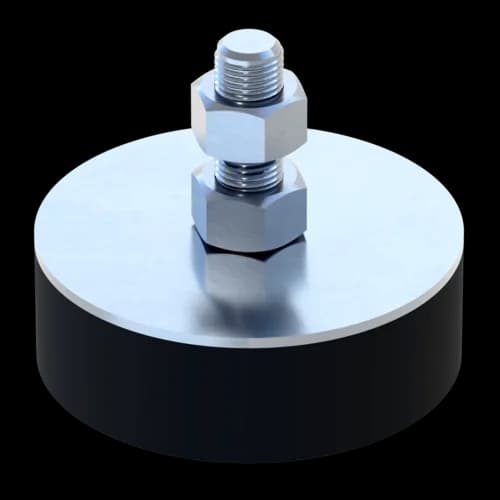

Anti-Vibration Element GMT
Group: 1399
Rubber-metal combination element GMT suppresses vibrations from systems such as motors and boilers
Prevents transmission of vibrations as sound through rigid building structures
Mounting situation does not affect efficiency; can also be used as a horizontal stop buffer
Overview of Types
General Information
The Rubber-Metal Combination Element GMT suppresses vibrations originating from various systems. Such vibrations generated by the system (such as motors, boilers..) are normally transmitted as sound to the environment via rigid building structures. The mounting situation does not affect the efficiency of the Sikla Rubber-Metal Combination Element GMT, this element may also be applied as a horizontal stop buffer.
Certification
Technical specifications
Max. temperature | 70 °C |
Min. temperature | -30 °C |
Hardness | 57+/-5° Shore |
Material base body | steel |
Material insulation body | caoutchouc |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
GMT M12 | 5,00 kN |
