Assembly Group BG11 MS 41 M10 HCP
Group: 1102

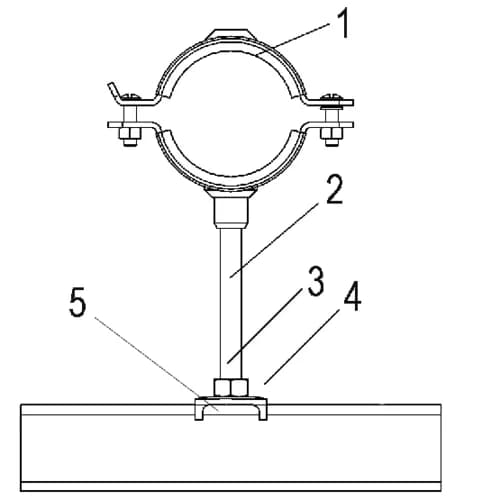

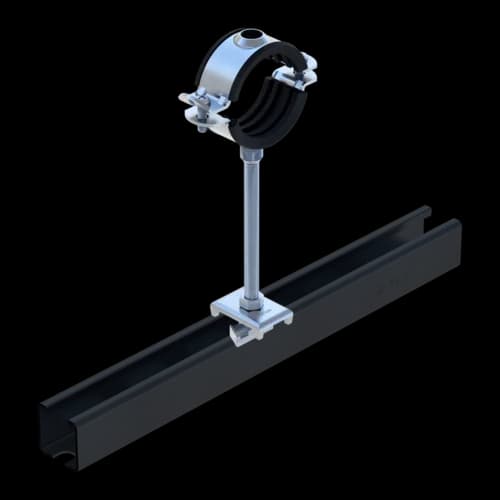

Contains components for a permanent pipe connection with pipe clamp Stabil D-3G
Designed for use with the Sikla MS 41 channel system
Height adjustment via Threaded Rod M10, sound absorption according to DIN 4109
Overview of Types
General Information
An Assembly Group containing components to make up a permanent pipe connection with the pipe clamp Stabil D-3G. The Assembly Group is designed for use with the Sikla MS 41 channel system. The height is adjusted using the Threaded Rod M10. The pipe clamp with sound absorption lining ensures sound absorption in accordance with DIN 4109.
Certification
Technical specifications
Material base body | steel |
Material insulation body | SBR/EPDM |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Installation
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
L(max, horizontal) = not recommended
