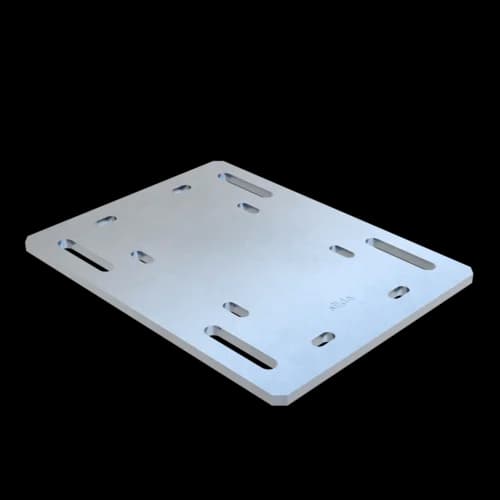

Beam Adapter Plate TKZ HCP
Group: A627
Production of a cross-bracing within the siMotec 100 and 120 support systems
Connection to primary steel structures with flange widths up to 310 mm possible
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
TKZ 80/120
TKZ 121/310
Group: A627
Production of a cross-bracing within the siMotec 100 and 120 support systems
Connection to primary steel structures with flange widths up to 310 mm possible
Beam flange width 80 - 120:
Connect Beam Adapter Plate 80/120 with the help of 2 x Assembly Set MS 5P M12 (Part number 115843) onto the crossing steel beam. Assembly Sets must be ordered separately.
Beam flange width 121 - 160:
Connect Beam Adapter Plate 121/310 with the help of 2 x Assembly Set MS 5P M12 (Part number 115843) onto the crossing steel beam. Assembly Sets must be ordered separately.
Beam flange width 161 - 310:
Connect Beam Adapter Plate 121/310 with the help of 1 x Assembly Set MS 5P M12 (Part number 115843) and 1 x Assembly Set MS 5P M16 (Part number 115844) onto the crossing steel beam. Assembly Sets must be ordered separately.
| Type | Connection to flange width [mm] | Tightening torque MA [Nm] / plus revolution |
|---|---|---|
| 80/120 | 80 - 120 | 60 / 90° |
| 121/310 | 121 - 160 | 60 / 90° |
| 121/310 | 161 - 310 | 140 / 90° |
Info | Type | Min. flange width | Weight | Quantity | Part number | |
| TKZ 80/120 HCP | 80,00 mm | 6,09 kg/pcs. | 1 pcs. | 803575 | ||
| TKZ 121/310 HCP | 121,00 mm | 11,7 kg/pcs. | 1 pcs. | 803576 | ||
For the production of a cross-bracing within the Simotec beam systems 100 and 120. Connection to the primary steel structure with a flange width of up to 310 mm is also possible. According to the flange width select a suitable type.
Certification
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | VZ,perm. |
TKZ 80/120 HCP | 12,00 kN | 12,00 kN | 12,00 kN | 12,00 kN | 52,60 kN |
TKZ 121/310 HCP | 12,00 kN | 12,00 kN | 12,00 kN | 12,00 kN | 52,60 kN |
Shear force load capacities are calculated for the worst event of flange thickness 30 mm (M12) or 40 mm (M16) and include a friction coefficient µ(adhesion) = 0.20.
A possibly operating tensile force F(z) isn't included.
Also available with DualShield for high corrosion protection within C5H environments.
Software
This product is available in the following software.
