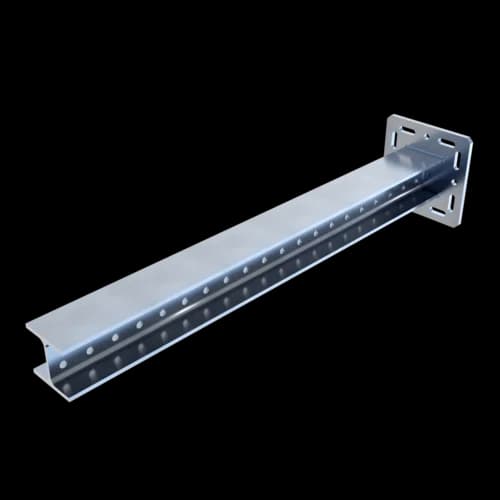

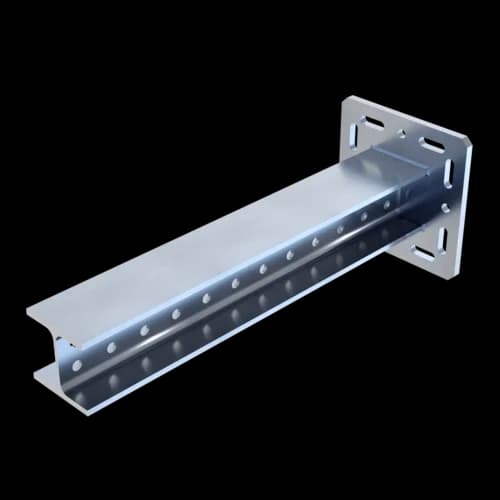

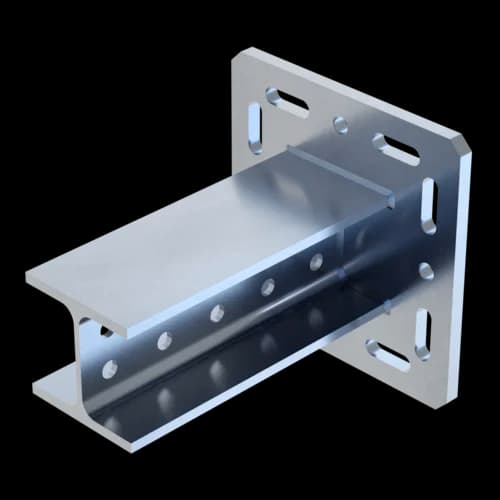

Beam Bracket TKO 100 HCP

Group: A625

Element for mounting to floors, ceilings or walls or for assembling crossbars.

Select a Type

Overview of Types
General Information
Installation
Documents

Overview of Types

Info	Type	L_G	Weight	Quantity	Part number
	TKO 100- 250 HCP	262 mm	8,45 kg/pcs.	1 pcs.	193099

	TKO 100- 350 HCP	362 mm	10,366 kg/pcs.	1 pcs.	185402

	TKO 100- 400 HCP	412 mm	11,154 kg/pcs.	1 pcs.	185411

	TKO 100- 450 HCP	462 mm	11,942 kg/pcs.	1 pcs.	185420

	TKO 100- 500 HCP	512 mm	12,73 kg/pcs.	1 pcs.	185429

	TKO 100- 550 HCP	562 mm	13,707 kg/pcs.	1 pcs.	185438

	TKO 100- 600 HCP	612 mm	14,181 kg/pcs.	1 pcs.	185447

	TKO 100- 650 HCP	662 mm	14,969 kg/pcs.	1 pcs.	185456

	TKO 100- 700 HCP	712 mm	16,545 kg/pcs.	1 pcs.	185465

	TKO 100- 750 HCP	762 mm	17,173 kg/pcs.	1 pcs.	185474

	TKO 100- 800 HCP	812 mm	17,935 kg/pcs.	1 pcs.	185483

	TKO 100- 850 HCP	862 mm	18,746 kg/pcs.	1 pcs.	185492

	TKO 100- 900 HCP	912 mm	19,557 kg/pcs.	1 pcs.	185501

	TKO 100- 950 HCP	962 mm	20,345 kg/pcs.	1 pcs.	185510

	TKO 100-1000 HCP	1.012 mm	21,179 kg/pcs.	1 pcs.	185519

	TKO 100-1100 HCP	1.112 mm	22,284 kg/pcs.	1 pcs.	185528

	TKO 100-1200 HCP	1.212 mm	25,188 kg/pcs.	1 pcs.	185537

	TKO 100-1300 HCP	1.312 mm	25,807 kg/pcs.	1 pcs.	185546

	TKO 100-1400 HCP	1.412 mm	28,56 kg/pcs.	1 pcs.	185555

	TKO 100-1500 HCP	1.512 mm	30,1 kg/pcs.	1 pcs.	185564

	TKO 100-2000 HCP	2.012 mm	39,021 kg/pcs.	1 pcs.	185573

Documents

Installation

Depending on the situation, different options are recommended:

a) Fixing to building structure using 4 heavy-duty anchors M12.
b) Frictional connection to steel beams (flange width 80 - 120 mm) with Assembly Set 5P M12 S.
c) Interlocking connection to other beam brackets TKO 100 or 120 by means of Bracket Plates FV 100/120.

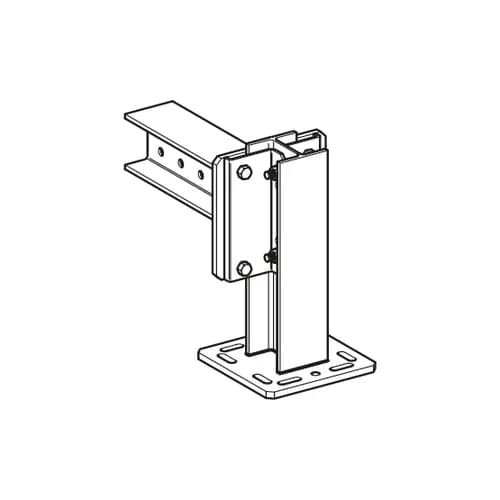

Configuration: Base plate welded to IPBI 100 beam

Guidelines / Static

Static Guideline - siMotec
PDF (8.58 MB)

Info	Type	L_G	Weight	Quantity	Part number
	TKO 100- 250 HCP	262 mm	8,45 kg/pcs.	1 pcs.	193099

	TKO 100- 350 HCP	362 mm	10,366 kg/pcs.	1 pcs.	185402

	TKO 100- 400 HCP	412 mm	11,154 kg/pcs.	1 pcs.	185411

	TKO 100- 450 HCP	462 mm	11,942 kg/pcs.	1 pcs.	185420

	TKO 100- 500 HCP	512 mm	12,73 kg/pcs.	1 pcs.	185429

	TKO 100- 550 HCP	562 mm	13,707 kg/pcs.	1 pcs.	185438

	TKO 100- 600 HCP	612 mm	14,181 kg/pcs.	1 pcs.	185447

	TKO 100- 650 HCP	662 mm	14,969 kg/pcs.	1 pcs.	185456

	TKO 100- 700 HCP	712 mm	16,545 kg/pcs.	1 pcs.	185465

	TKO 100- 750 HCP	762 mm	17,173 kg/pcs.	1 pcs.	185474

	TKO 100- 800 HCP	812 mm	17,935 kg/pcs.	1 pcs.	185483

	TKO 100- 850 HCP	862 mm	18,746 kg/pcs.	1 pcs.	185492

	TKO 100- 900 HCP	912 mm	19,557 kg/pcs.	1 pcs.	185501

	TKO 100- 950 HCP	962 mm	20,345 kg/pcs.	1 pcs.	185510

	TKO 100-1000 HCP	1.012 mm	21,179 kg/pcs.	1 pcs.	185519

	TKO 100-1100 HCP	1.112 mm	22,284 kg/pcs.	1 pcs.	185528

	TKO 100-1200 HCP	1.212 mm	25,188 kg/pcs.	1 pcs.	185537

	TKO 100-1300 HCP	1.312 mm	25,807 kg/pcs.	1 pcs.	185546

	TKO 100-1400 HCP	1.412 mm	28,56 kg/pcs.	1 pcs.	185555

	TKO 100-1500 HCP	1.512 mm	30,1 kg/pcs.	1 pcs.	185564

	TKO 100-2000 HCP	2.012 mm	39,021 kg/pcs.	1 pcs.	185573

General Information

Element for mounting to floors, ceilings or walls or for assembling crossbars.

Certification

CE mark (Declaration of performance see downloads)
ETA-24/0471

Technical specifications

Primary element material	steel
Surface finish	HCP
Corrosion protection class	C4

Also available with DualShield for high corrosion protection within C5H environments.

Software

This product is available in the following software.
