TP 120

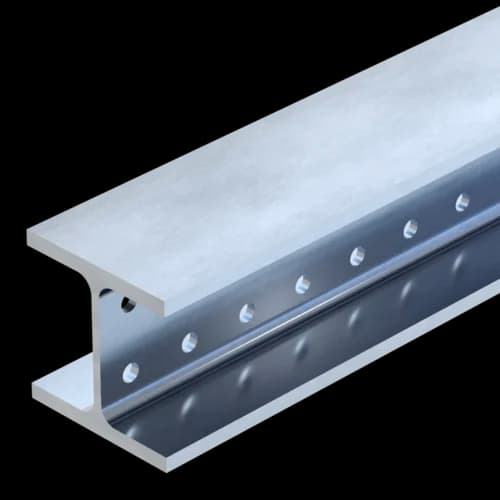

Beam Section TP 120 HCP
Group: A600
Multifunctional support profile for tracks, complex substructures and 3D units
Suitable for demanding load situations such as large spans
Overview of Types
General Information
Multifunctional beam section to create complex substructures and 3D units for a wide range of applications. The beam section is suitable for a wide variety of applications with demanding load situations, e.g. with large spans or heavily loaded frame constructions.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | Resistance torque Wy | Resistance torque Wz | Moment of inertia Iy | Moment of inertia Iz | Radius of inertia iy | Radius of inertia iz |
TP 120 6M HCP | 142,00 cm³ | 52,80 cm³ | 853,00 cm^4 | 317,00 cm^4 | 5,13 cm | 3,13 cm |
Type | Moment of inertia It | Cross-section A |
TP 120 6M HCP | 13,66 cm^4 | 32,30 cm² |
Note: All values refer to slotted channels.
Also available with DUALSHIELD for high corrosion protection within C5H environments.
