H3G2-PL

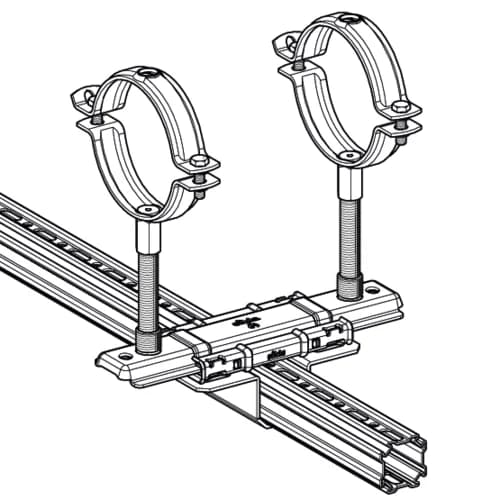

Bi-directional Slide Set KGL H3G2-PL 46 HCP
Group: B111
Part number 807436
Technical Data
Load range
-VZ,perm. | 3,45 kN |
VZ,perm. | 11,04 kN |
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,07 |
Static Friction μ0 | 0,07 |
Static friction coefficient µ0 MPH/Profile | 0,2 |
Material base body | steel |
Material sliding element | PA GF, MoS2-coated |
Surface | HCP |
Certification
