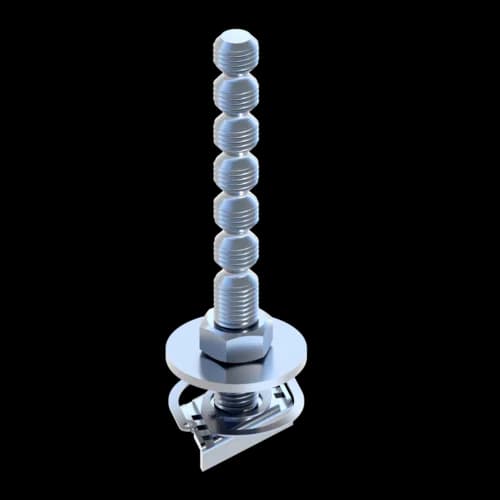

Blockset PBS CC27 M8 X175
Group: 2761
Part number 195918
Quick-installation element for mounting pipe clamps and components to Channels MS 27
Pre-assembled Blockset of 4 parts saves time and allows easy height adjustment
Grooved rod prevents unscrewing and can be cut every 10 mm using Rod Cutter PBC 1
Technical Data
H | 184 mm |
H1 | 175 mm |
Ma | M8 |
Completely pre-assembled (block with holding bracket, grooved rod and nut).

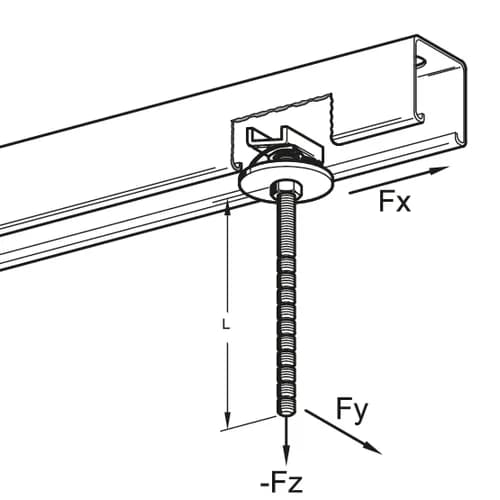

Load range
VX,perm. | 0,80 kN |
VZ,perm. | 1,50 kN |
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation

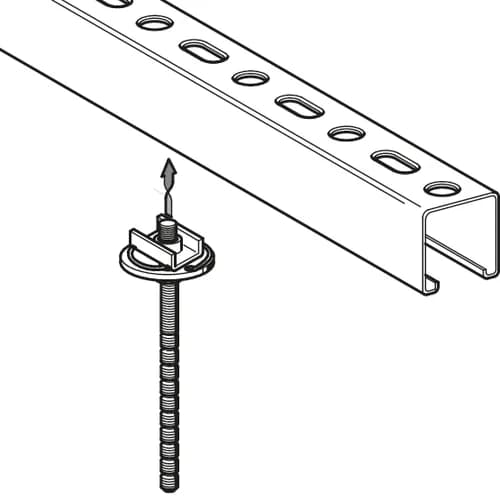

Insert the Blockset into the channel, then tighten the nut to 10 Nm - That's it!
Disassembly by turning the Grooved Rod counterclockwise while pressing in the direction of the channel.
