LUW SZ

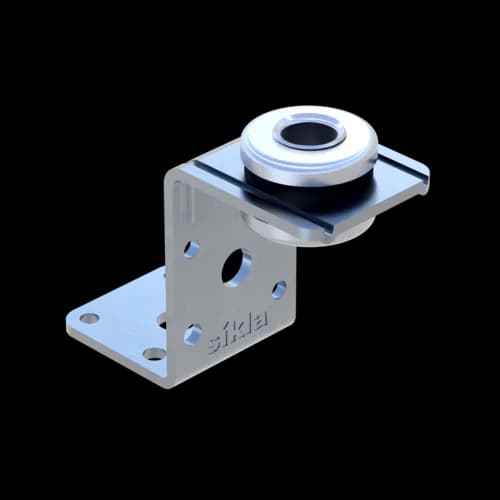

Ducting Angle LUW SZ
Group: 1601
Part number 189902
For suspending rectangular ventilation ducts directly below the ceiling or for suspended installation using threaded rods
Suitable for soundproof duct installation according to DIN 4109, with adjustment option in the slotted hole
Technical Data
With a pre-assembled sound absorption head.
Load range
-VZ,perm. | 0,80 kN |
Technical specifications
Max. temperature | 110 °C |
Min. temperature | -50 °C |
Insertion Isolation | 8,7 dB(A) |
Hardness | 45+ / -5° Shore |
Material base body | steel |
Material insulation body | EPDM |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
Fixing to duct with rivets (4 mm), sheet metal screws (4 mm) or M8 bolts.
Adjustable range: 13 mm
Connection to building structure: M8/M10
