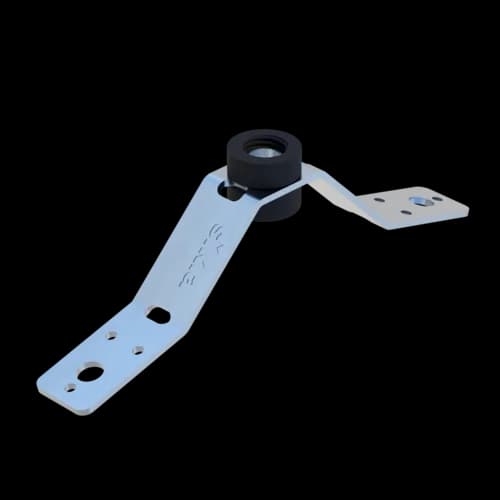

Ducting Strap LUB
Group: 1603
Suitable if soundproof installation according to DIN 4109 is demanded
Enables mounting of threaded rod close to a ceiling, or for suspended installation
Overview of Types
General Information
For quick and safe soundproof mounting of ducts either close to a ceiling, or for suspended installation when using a threaded rod. The bending points are punched, ensuring easy and exact adjustment to the pipe diameter. Suitable if soundproof installation according to DIN 4109 is demanded.
Certification
Technical specifications
Material base body | steel |
Material insulation body | TPE |
Surface | pre-galavanised |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
LUB | 0,30 kN |
Software
This product is available in the following software.
Installation
The use of 2 x 3 blind steel rivets of 4 mm is recommended.
Connection bush: 10,5
Thread connection: M8 or M10
