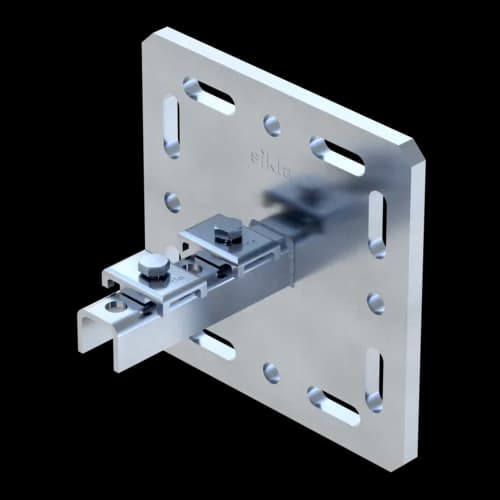

End Support WBD C 41 HCP
Group: 1856
End Support WBD combined with Sikla Channels MS 41/41 is ideal for setting up support structures on walls, floors and ceilings and for direct fixing to steel beams
In combination with Joining Plate AP, fixing to beams with flange width greater than 120 mm is possible
Overview of Types
General Information
In combination with Sikla Channels MS 41/41, End Support WBD is ideal for setting up support structures attached to walls, floors and ceilings and for direct fixing to steel beams. In combination with Joining Plate AP, a fixing to beams with flange width > 120 mm is possible.
Certification
Technical specifications
Material base body | steel |
Material connecting element | cast steel |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Installation
Depending on the situation, different options are recommended:
a) Frictional connection to steel beams using Assembly Set MS 5P M12 S.
b) Fixing to the building structure using at least 2 heavy-duty anchors M12. Please observe loads and approvals of anchors. For ceiling mounting, the bolt connecting channel and end support must pass through both parts.
Selection guide:
| Type | For Sikla Channels | For beam width [mm] | Holes for |
|---|---|---|---|
| 41/41-45 C0 | 41/41, 41/45 | 80 - 120 | M12 |
| 41-75/75 C0 | 41-75/75 | 80 - 120 | M12 |
| 41/41-45 D C0 | 41/41 D, 41/45 D | 80 - 120 | M12 |
