End Tee IR-E
Group: 1334
Cross Tee IR-E for creating end connections in installation grids made of Channels 41
In combination with Cross Tee IR-M and Channels 41, a complete installation grid can be created
Enables cost- and time-saving adjustment of pipe and cable supplies with flexible modification options
Overview of Types
General Information
The Cross Tee IR-E is used to create an end connection for installation grids made of Channels 41. In combination with Channels 41 and the Cross Tee IR-M a complete installation grid can be created. For the connection to the structure the Tension Tie Rod Disc IR, which enables a y-suspension, can be used if necessary. An installation grid system allows a cost- and time-saving adjustment of the pipe and cable supplies. New production process requirements can be implemented efficiently. Saving time by means of Pressix CC-components. Flexible choice of Channels. Simple modificaton of End and Cross Tees.
Certification
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
IR-E 41/52D | 6,00 kN |
IR-E 41/62D | 6,00 kN |
Note: Working load per fixing point.
Software
This product is available in the following software.
Installation

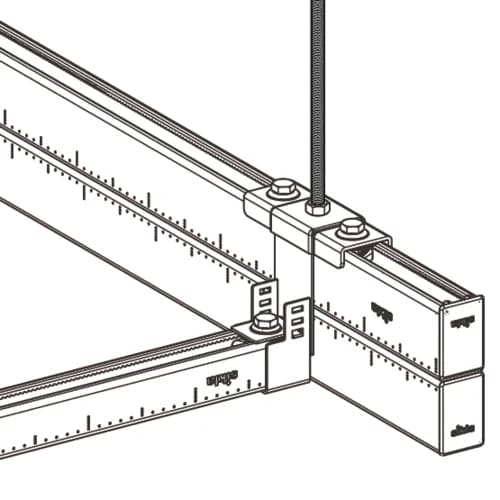

1. Mount the hooked feeder plate of the End Tee to the main runner.
2. Place the suspension holding bracket over the hooked feeder plate and tighten it.
3. Insert the cross strut section into the hooked feeder plate and fix it by means of the clamping plate, Speed Nut NT CC 41 and hexagon bolt.
Tightening torque: 10 Nm
| Type | appropiate main runner | appropiate cross strut section |
|---|---|---|
| IR-E 41/52 D | MS 41/52 D | MS 41/41, 41/52, 41/62 |
| IR-E 41/62 D | MS 41/62 D | MS 41/41, 41/52, 41/62 |
