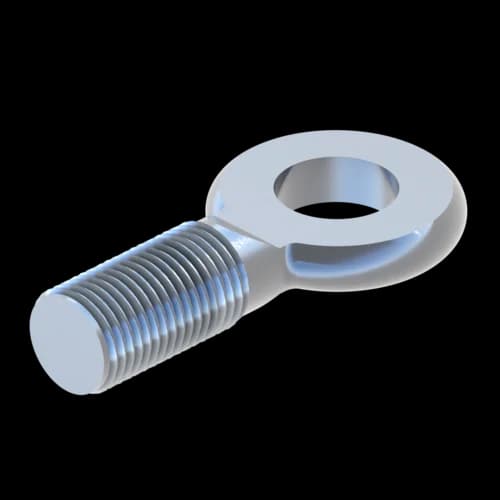

Eye Bolt SCR AS
Group: 1303
For attaching hooks, chains or perforated tape to existing perforated angle steel beams
Enables adaptation of threaded rods for flexible mounting options
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: 1303
For attaching hooks, chains or perforated tape to existing perforated angle steel beams
Enables adaptation of threaded rods for flexible mounting options
Info | Type | L | Weight | Quantity | Part number | |
| SCR AS M 8x 20 | 45,00 mm | 0,015 kg/pcs. | 100 pcs. | 102418 | ||
| SCR AS M10x 20 | 48,00 mm | 0,024 kg/pcs. | 100 pcs. | 102427 | ||
For attaching hooks, chains or perforated tape, as well as for adapting threaded rods to perforated angle steel beams available on site.
Certification
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Type | -VZ,perm. |
SCR AS M 8x 20 | 4,00 kN |
SCR AS M10x 20 | 6,90 kN |
