FS 80/120
FS 240/260
FS 280/300
FS HCP
Group: A705

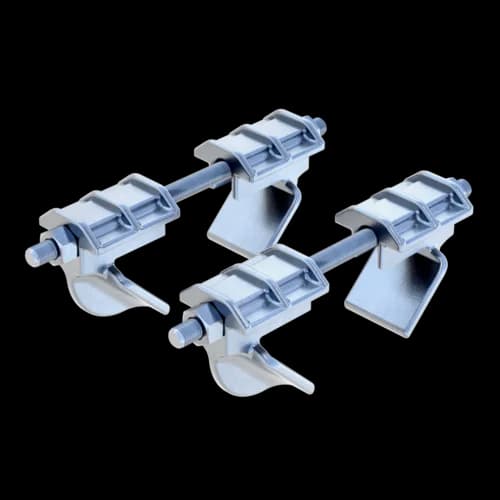

Element for extending siMotec pipe shoes to guided pipe shoes on steel beams with flange widths from 80 to 300 mm
Overview of Types
General Information
Element for extending siMotec Pipe Shoes to Guided Pipe Shoes on stell beams with flange widths from 80-300 mm.
Certification
Technical specifications
Material base body | cast steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Software
This product is available in the following software.
Installation
Max. beam flange width t ≤ 30 mm
Tightening Torques:
| Flange Thickness [mm] | Beam Width 80 - 220 mm Tightening Torque [Nm] |
Beam Width 221 - 300 mm Tightening Torque [Nm] |
|---|---|---|
| 5 - 10 | 40 | 15 |
| 11 - 20 | 25 | 15 |
| 21 - 30 | 20 | 15 |
