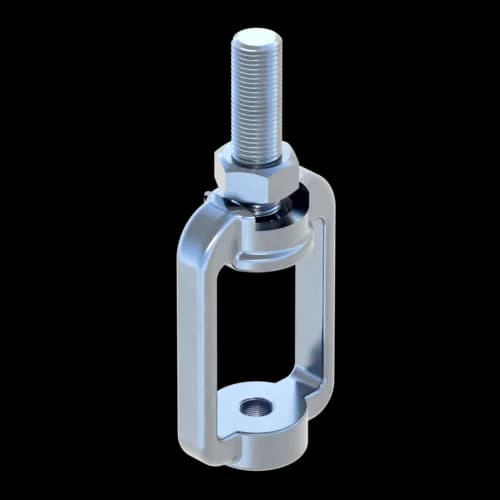

Height Adjuster HRS P
Group: 1339
Suitable for all M&E services
Can be fixed directly to the ceiling (anchor) or in a suitable channel
Suspension unit in the upper section allows pipes to move in all directions
Overview of Types
General Information
Suitable for all M&E services. May be fixed directly to the ceiling (anchor) or in a suitable channel. Especially advantageous due to the suspension unit in the upper section of the height adjuster, since it enables the pipes to move in all directions.
Certification
Technical specifications
Material base body | cast steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
HRS P M 8 | 4,00 kN |
HRS P M10 | 4,00 kN |
Software
This product is available in the following software.
Installation
The upper part of the base component can be used as a tool for screwing in the suspending bolt. Then the bolt only has to be tightened with an open-ended spanner. After mounting, the base component rests freely mobile and rotatable on the rounded bolt head. Fixing a locking nut against the cup nut secures the height adjusted.
Max. swinging angle: 7°
Connections:
| Type | Connection to system | Connection to building structure |
|---|---|---|
| P M8 | M8 | M8 x 22 |
| P M10 | M10 | M10 x 22 |
