Mounting Kit VP SDE2 A/B- 1/2''
Group: 1380
Part number 178175
Assembly of sloped supports for Fixed Points
Direct mounting with bevelled Universal Joint UG FP possible
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: 1380
Part number 178175
Assembly of sloped supports for Fixed Points
Direct mounting with bevelled Universal Joint UG FP possible

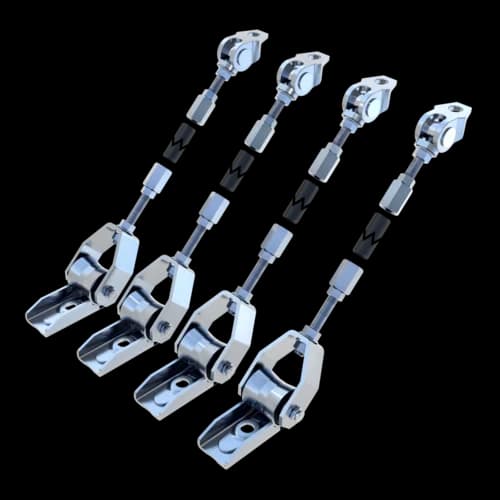

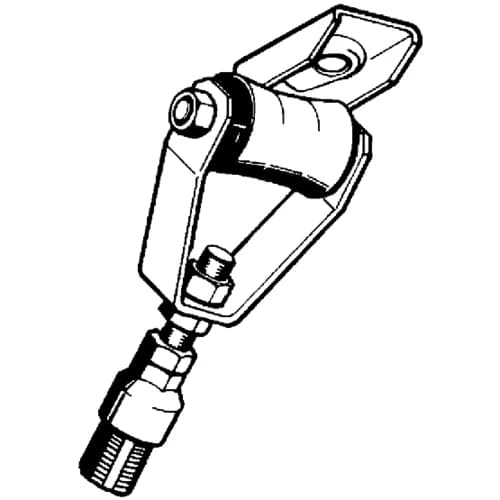

The Universal Joint UG FP and Sound Absorber SDE 2-UG 16 are already pre-assembled as Mounting Kits, containing Threaded Stud, Hexagon Nut and Rod Coupling. By this, mistakes during assembly are being eliminated. Anchors to be ordered separately.
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
By either using Threaded Tubes or Threaded Studs the Universal Joint UG FP and Sound Absorber SDE 2-UG 16 are then connected to make up a support . The four supports can then be directly mounted with the UG FP to the Fixed Point Clamp.
