ST R 1/2"

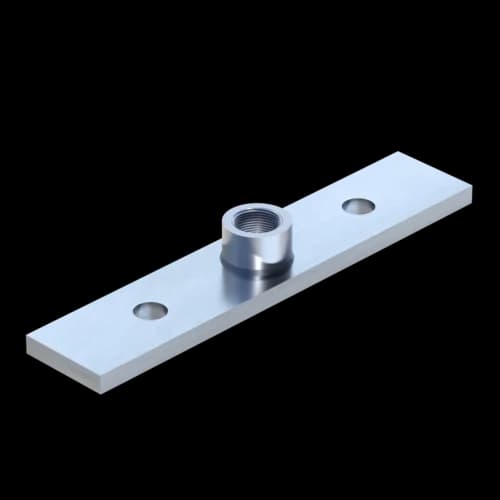

Mounting Plate GPL ST R HCP
Group: 1827
Attachment component for connecting Beam Section TP F 100 or Channel MS
Overview of Types
General Information
Attachment component to connect Beam Section TP F 100 or Channel MS.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. |
GPL-ST R 1/2''-100 HCP | 13,00 kN | 13,00 kN | 13,00 kN | 13,00 kN | 18,00 kN |
Software
This product is available in the following software.
Installation

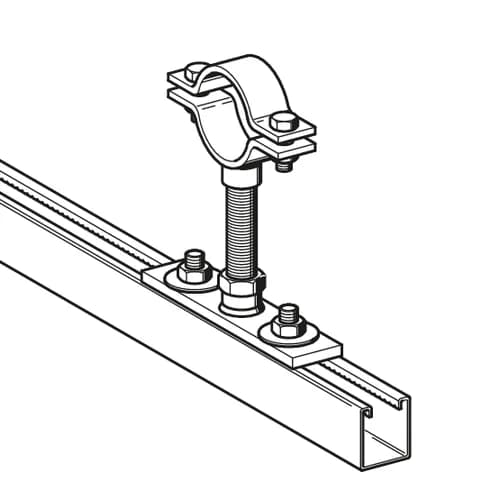

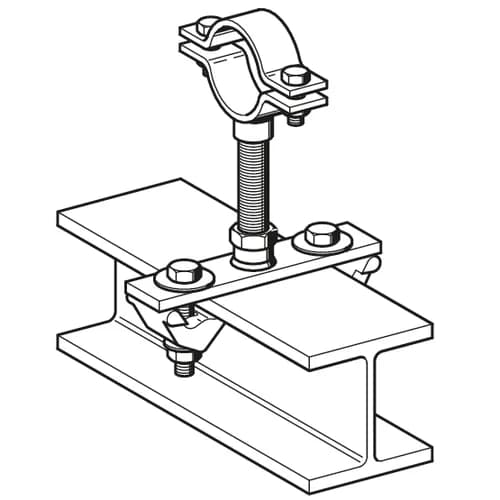

Requires assembly to Beam Bracket Profil with Set MS 5P or two T-Head Bolts TBO HZ 41 M12 at Channel MS.
