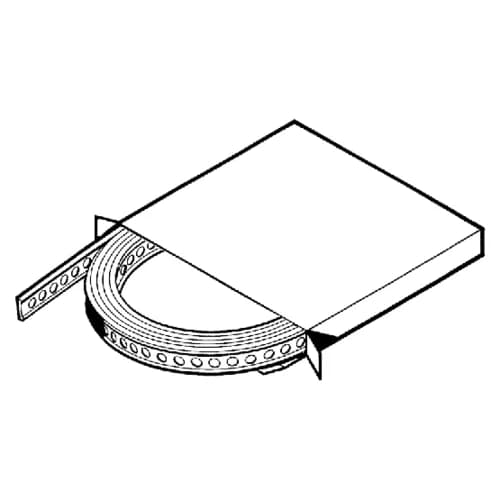

Perforated Fixing Strap BND 19
Group: 1129
Part number 121015
For dimensionless suspension without special requirements
Plastic-coated version is also suitable for copper tubes
Technical Data
Load range
-VZ,perm. | 0,50 kN |
Technical specifications
Max. temperature | 95 °C |
Min. temperature | -40 °C |
Material base body | steel |
Surface | electro galvanized (Fe//Zn), welded plastic cover |
Corossion class | C2 |
Certification
