Pipe Loop RSL N SIL 168 MM (6'')
Group: 1115
Part number 113316
For pipeline installations of fixed fire entinguishing systems, mainly used for sprinkler systems
With sound insulation for sound-proof pipe installation

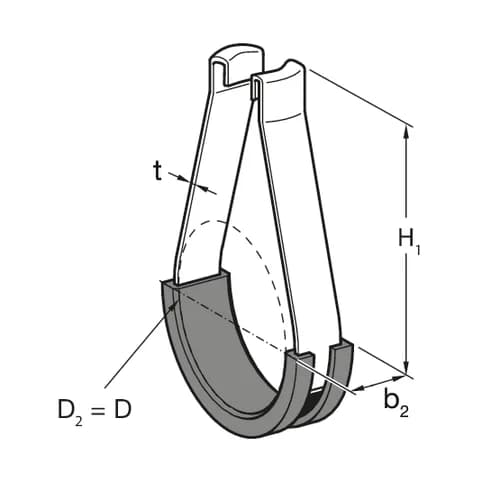

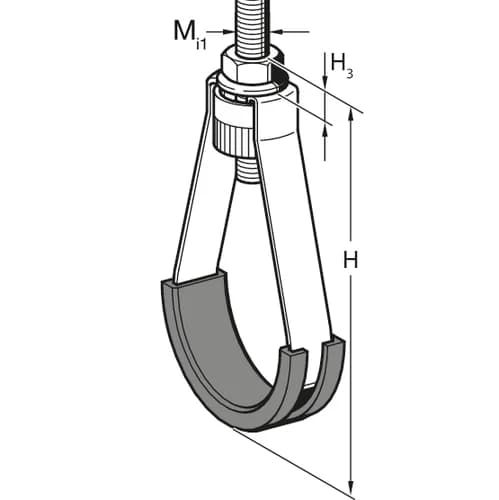

Technical Data
H | 274,5 mm |
D | 162 mm |
H1 | 172,5 mm |
t | 2,5 mm |
Mi1 | M12 |
H3 | 12 mm |
Flange nut and Cup nut included in loose form.
Technical specifications
Material base body | steel |
Material insulation body | silicone |
Material connecting element | steel |
Surface | pre-galavanised |
Corossion class | C2 |
Certification
VdS (No. G4850035) approved.
Documents
Approvals / VdS
- VdS Approval - Sikla Pipe Loop RSL N SIL - G4850035
PDF (6.21MB)
