JOI 41 S

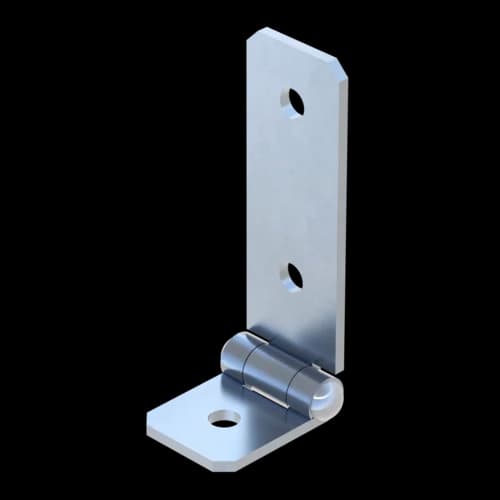

Pivot Joint JOI 41 S
Group: 1342
Part number 116577
Connects Channels 41 to the building structure with continuous angle adjustment up to 180°
Joint JOI S is primarily used for structural connection
Two fixing points to channel ensure rotation lock for compensating lateral forces
Technical Data
Load range
-VZ,perm. | 2,00 kN |
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification

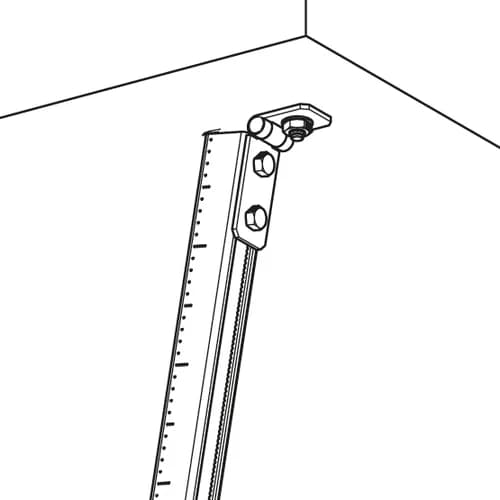

Installation
Version 1:
1. Fix the Joint JOI S by means of anchor/plug or bolt to the building structure or to the channel.
2. Fix to channel by means of Channel Nuts M10.
Version 2:
1. Insert the Channel Nut into the channel and fix it with the bolts.
2. Connection to building structure or channels with appropriate anchors or bolts.
Tightening torque: 50 Nm
