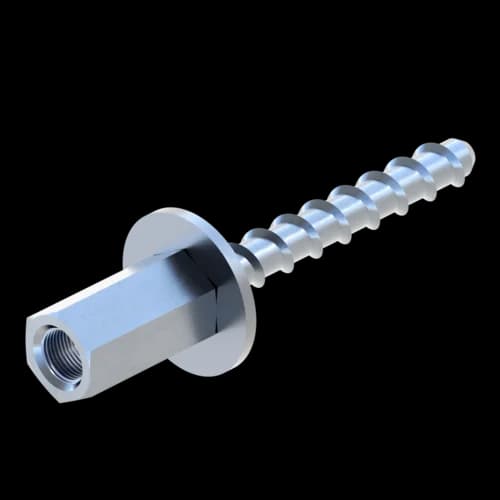

Screwbolt TSM-IM 6X 55 IM M8/10
Group: 1402
Part number 115721
Suitable for quick and safe fixation of Sikla pipe clamps and further components to concrete and masonry ceilings or walls.
Approved for applications under seismic impact of category C1
Technical Data
For load values, see additional documents.
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Further technical information (load capacities under fire exposure, appr. loads in further concrete classes and precast pre-stressed hollow core slabs) are shown in the download area.
Certification
ETA-16/0655 and ETA-16/0656

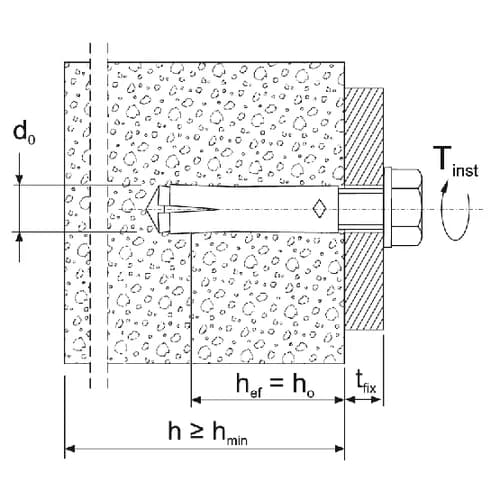

Installation
Screw in the bolt screw in pre-drilled hole. The special thread guarantees a mechanical form lock with the base material. Fine adjustment of depth is possible if the screwbolt is initially installed too deep.
Type 6x35 K: Only to be used as multiple fixing for non-load-bearing systems in concrete and prestressed concrete hollow plate ceilings.
