TSM-LP

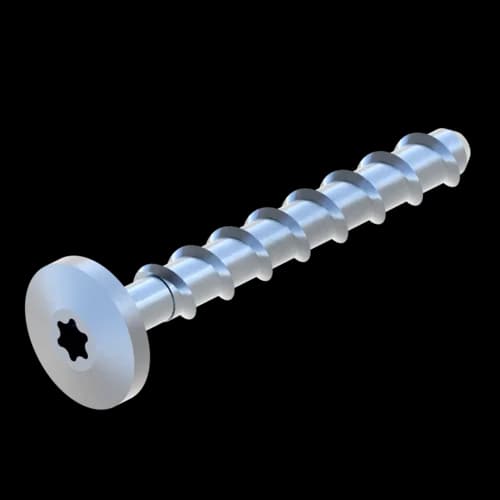

Screwbolt TSM-LP 6X 40 VZ30
Group: 1405
Part number 115026
Suitable for quick and safe fixation of Sikla Channel and further components to concrete and masonry ceilings or walls.
Approved for applications under seismic impact of category C1
Technical Data
For load values, see additional documents.
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Further technical information (load capacities under fire exposure, appr. loads in further concrete classes and precast pre-stressed hollow core slabs) are shown in the download area.
Certification
ETA-16/0655 and ETA-16/0656
Installation
For installation an impact wrench or rotary screwgun with a Torx bit T30 is to be used. Screw in the bolt screw in pre-drilled hole. The special thread guarantees a mechanical form lock with the base material. Fine adjustment of depth is possible if the screwbolt is initially installed too deep. The screwgun or impact wrench should not be used with any hammer-action setting engaged on the tool.
Types 6x40 and LPS 6x40: Only to be used as multiple fixing for non-load-bearing systems in concrete and prestressed concrete hollow plate ceilings.
Documents
- Screwbolt TSM - ETA 16/0656
PDF (1.77MB)
- Screwbolt TSM - ETA 16/0655
PDF (3.70MB)
- VdS Approval - Sikla Anchors – Types AN, BZ, TSM (DN 0–100)
PDF (0.23MB)
- Sikla Metal Anchor Systems
PDF (4.09MB)
- Screwbolt TSM - Type Overview
PDF (0.10MB)
- DoP - Srewbolt TSM (Multiple use)
PDF (0.55MB)
