Group: 1402
Suitable for quick and safe fixation of Sikla pipe clamps and further components with an internal thread M8 to concrete and masonry ceilings or walls.
European Technical Assessment for anchoring in cracked and non-cracked concrete and multiple use for non-load-bearing systems
Screw in the bolt screw in pre-drilled hole. The special thread guarantees a mechanical form lock with the base material. Fine adjustment of depth is possible if the screwbolt is initially installed too deep.
Type 6 x 35 K: Only to be used as multiple fixing for non-load-bearing systems in concrete and prestressed concrete hollow plate ceilings.
Info | Type | L | Weight | Quantity | Part number | |
| TSM-ST 6X 35 K M8X16 | 35,00 mm | 0,016 kg/pcs. | 100 pcs. | 115030 | ||
| TSM-ST 6X 55 M8X16 | 16,00 mm | 0,019 kg/pcs. | 100 pcs. | 115725 | ||

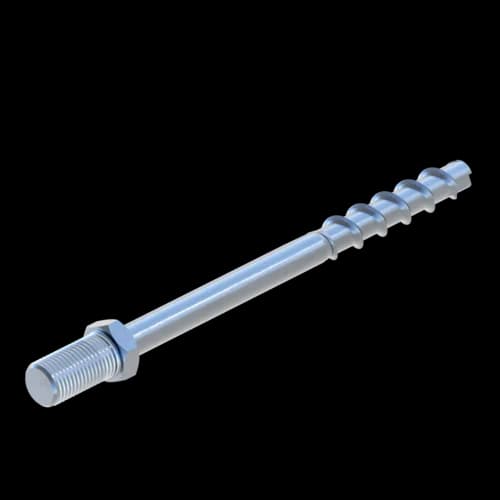

| TSM-ST 6X 75 M8X16 | 75,00 mm | 0,023 kg/pcs. | 100 pcs. | 115726 | ||
| TSM-ST 6X 95 M8X16 | 95,00 mm | 0,027 kg/pcs. | 100 pcs. | 115727 | ||
| TSM-ST 6X135 80/100 M8X16 | 135,00 mm | 0,039 kg/pcs. | 100 pcs. | 117835 | ||
| TSM-ST 6X155 100/120 M8X16 | 155,00 mm | 0,044 kg/pcs. | 100 pcs. | 117836 | ||
| TSM-ST 6X175 120/140 M8X16 | 175,00 mm | 0,05 kg/pcs. | 100 pcs. | 117837 | ||
| TSM-ST 6X195 140/160 M8X16 | 195,00 mm | 0,055 kg/pcs. | 100 pcs. | 117838 | ||
Suitable for quick and safe fixation of Sikla pipe clamps and further components with an internal thread M8 to concrete and masonry ceilings or walls. To be applied in dry rooms not exposed to high corrosion resistance requirements. European Technical Assessment for anchoring in cracked and non-cracked concrete (Option 1). European Technical Assessment for multiple use for non-structural systems in concrete and precast pre-stressed hollow core slabs. Approved for applications under seismic impact of category C1 (Types, diameters and anchoring depths are shown in the 'type overview' and ETA-16/0655. Also fixes into pressure-resistant natural stones and different solid bricks (not part of ETA approval / guideline). Small edge and axial distance due to low expansion pressure. Fixings in isolated ceilings can be realised with the long versions of the TSM-ST). Low drillling effort.
Certification
ETA-16/0655 and ETA-16/0656
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
For load values, see additional documents.
The following types are procured on an order-by-order basis and therefore have a delivery date on request: 6x55, 6x75, 6x95, 6x135, 6x155, 6x195
Screwbolt TSM - ETA 16/0656
PDF (1.77 MB)
Screwbolt TSM - ETA 16/0655
PDF (3.7 MB)
VdS Approval - Sikla Anchors – Types AN, BZ, TSM (DN 0–100)
PDF (233 KB)
Sikla Metal Anchor Systems
PDF (4.09 MB)
Screwbolt TSM - Type Overview
PDF (100 KB)
DoP - Srewbolt TSM (Multiple use)
PDF (564 KB)
