H3G2-PL

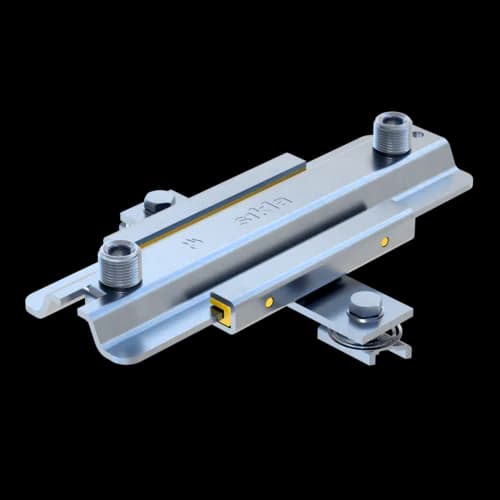

Slide Set GS CC H3G2 - PL

Group: 1336

Part number 191738

Heavy-duty slide set for plant construction, suitable for Sikla Channels, brick or concrete walls and bearers

Preferably used with pipe clamps Stabil D-3G, Ratio S and Chilled Water Clamp SKS; various connection options including M12, M16 and 1/2' adapters

Especially suitable for ceiling and floor mounting and as a guide for rising pipes; sound absorption by PPS glass fibre reinforced slide rails

Technical Data

b	13 mm
B₂	275 mm
B₄	210 mm
B_P	40 mm
d_P	13 mm
H_G	54,5 mm
l_z	10 mm
L_P	188 mm
L_P1	160 mm
M_a	1/2"
M_i1	M12
M_i2	M16
t_P	5 mm

Slide Set incl. pre-assembled CC-component.

Load range

-V_Z,perm.	5,00 kN
V_Z,perm.	9,00 kN

Fire Resistance 30 min	1 kN
Fire Resistance 60 min	0,54 kN
Fire Resistance 90 min	0,36 kN
Fire Resistance 120 min	0,26 kN

The load capacity of the connecting parts used is to be considered. This applies particularly under stress of fire.

Technical specifications

Permissible long-term temperature

130 °C

Sliding friction μ	0,14
Static coefficient of friction μ₀	0,18

Primary element material	steel
Sliding element material

Installation

Locks automatically in the channel by pushing down the the bolt head, tighten - that's it!
For pipes of DN 100 or larger having to be spaced at a distance from the Slide Set, or under conditions of reversed bending stress, the 3G triple thread nut is to be secured by screwing on a 1/2" Locking Nut.

Lever L(max): 250 mm
Max. sliding distance Type CC - H3G-PL: 100 mm
Max. sliding distance Type CC - H3G2-PL: 135 mm
