H3G

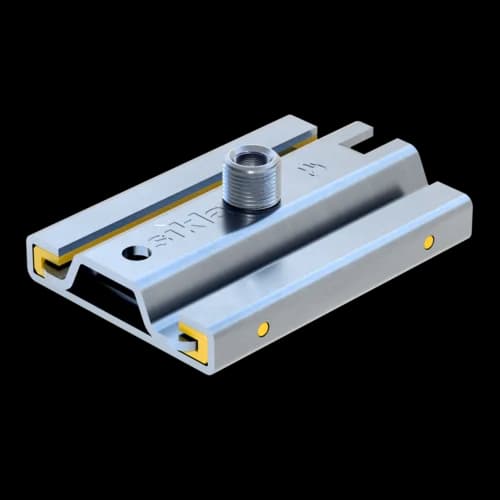

Slide Set GS H3G A4
Group: 1736
Heavy-duty slide set for plant construction, preferably used with Sikla Pipe Clamps Stabil D-3G ss
Various connection options depending on load: M12, M16 or with 1/2' adapters; sound absorption by glass fibre reinforced polyamide slide rails
Suitable for ceiling and floor mounting and as a guide for rising pipes; for wall mounting use Sikla Support Brackets and consider reduced permissible anchor loads
Overview of Types
General Information
Heavy-duty Slide Set for plant construction. To be used preferably in combination with Sikla Pipe Clamps Stabil D-3G ss. Various connection options of the pipe clamps depending on the respecitve load: M12, M16 or with 1/2' adapters using the external thread (see Adapter AD f/f ss). Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes. For wall mounting, we recommend the use of the Slide Set on Sikla Support Brackets. When mounting the Slide Set directly to a wall, the reduced permissible loads of the anchors are to be taken into consideration. Sound absorption by means of slide rails with glass fibre reinforced polyamide.
Certification
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,14 |
Static Friction μ0 | 0,18 |
Material base body | Stainless Steel A4 |
Material sliding element | PA |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Load range
Type | -VZ,perm. | VZ,perm. |
GS H3G A4 | 5,00 kN | 9,00 kN |
GS H3G2 A4 | 5,00 kN | 9,00 kN |
The permissible bending moment of the connecting element (threaded rod or threaded tube) may restrict the application!
Software
This product is available in the following software.
Installation
For pipes of NB 100 or larger having to be spaced at a distance from the Slide Set, or under conditions of reversed bending stress, the 3G triple thread nuts are to be secured by screwing on a 1/2' Locking Nut.
Lever L(max): 250 mm
Max. sliding distance Type H3G: 100 mm
Max. sliding distance Type H3G2: 135 mm
Documents
- Installation - Slide Set GS H3G
PDF (0.09MB)
