H3G-PL

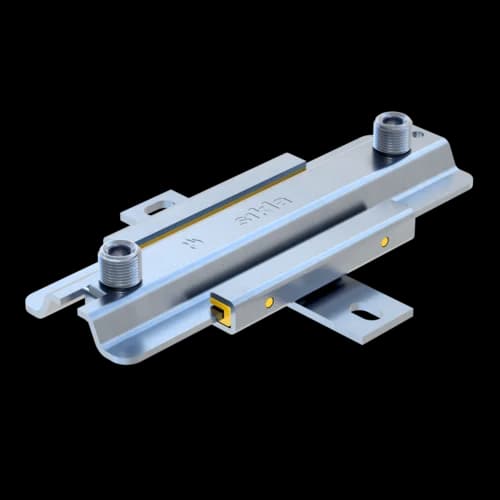

H3G2-PL
Slide Set GS H3G PL
Group: 1336
Heavy-duty slide set for plant construction, suitable for Sikla Channels, brick or concrete walls and bearers; especially for bolted mounting to the building structure
Preferably used with Sikla Pipe Clamp Stabil D-3G and Chilled Water Clamp SKS Top-2C; various connection options depending on load: M12, M16 or with 1/2' adapters
Sound absorption by glass fibre reinforced polyamide slide rails; suitable for ceiling and floor mounting and as a guide for rising pipes
Overview of Types
General Information
Heavy-duty Slide Set for plant construction, to be used on Sikla Channels, brick or concrete walls and on bearers. This Slide Set version is especially suitable for bolted mounting to the building structure. To be used preferably in combination with Sikla Pipe Clamp Stabil D-3G and Chilled Water Clamp SKS Top-2C. Various connection options of the pipe clamps depending on the respective load: M12, M16 or with 1/2' adapters using the external thread (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced polyamide slide rails. Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes.
Certification
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,14 |
Static Friction μ0 | 0,18 |
Material base body | steel |
Material sliding element | PA GF |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. | VZ,perm. |
GS H3G - PL | 5,00 kN | 9,00 kN |
GS H3G2 - PL | 5,00 kN | 9,00 kN |
The load capacity of the connecting parts used is to be considered. This applies particularly under stress of fire.
Fire resistance
Type | FRP 30 | FRP 60 | FRP 90 | FRP 120 |
GS H3G - PL | 1 kN | 0,54 kN | 0,36 kN | 0,26 kN |
GS H3G2 - PL | 1 kN | 0,54 kN | 0,36 kN | 0,26 kN |
Software
This product is available in the following software.
Installation
For pipes of NB 100 or larger having to be spaced at a distance from the Slide Set, or under conditions of reversed bending stress, the 3G triple thread nuts are to be secured by screwing on a 1/2' Locking Nut.
Documents
- Installation - Slide Set GS H3G-PL
PDF (0.09MB)
