Type FP-1

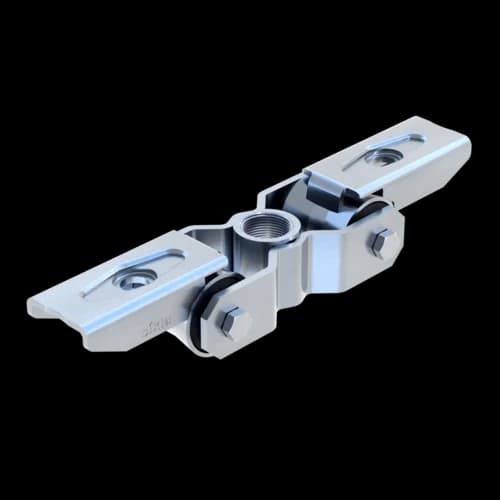

Sound Absorber SDE 2 FP
Group: 1612
Universally applicable sound insulation element for higher loads and sound insulation requirements in accordance with DIN 4109
Suitable for individual suspension on threaded tubes up to 1" and as a base for soundproofed fixed points
Overview of Types
General Information
Universal sound absorption element for heavy loads. Particularly suitable for soundproof installation according to DIN 4109 of single point connections to threaded tubes up to 1' as a base for soundproof fixed points. Can be fixed either directly to building components by means of two M16 heavy duty anchors or to steel structures, or onto Sikla Channels (recommended from size 41/45).
Certification
Technical specifications
Max. temperature | 100 °C |
Min. temperature | -30 °C |
Insertion Isolation | 15 dB(A) |
Bulk Density | 650,00 kg/m³ |
Material base body | steel |
Material insulation body | PUR |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |

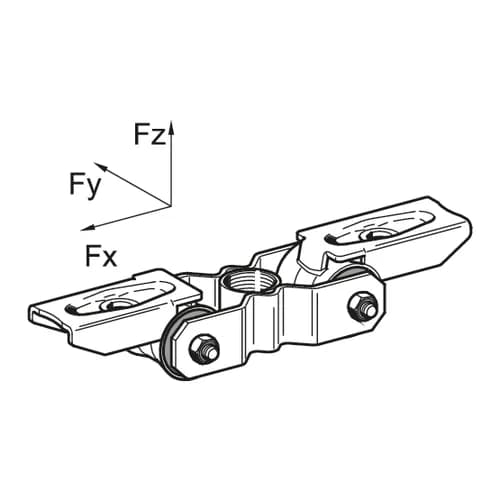

Load range
Type | -VX,perm. | VX,perm. | -VZ,perm. | VZ,perm. |
SDE 2-FP 1 | 20,00 kN | 20,00 kN | 20,00 kN | 20,00 kN |
Lateral forces require additional support.
Dimensioning of the anchor and of further joining elements has to be taken into consideration.

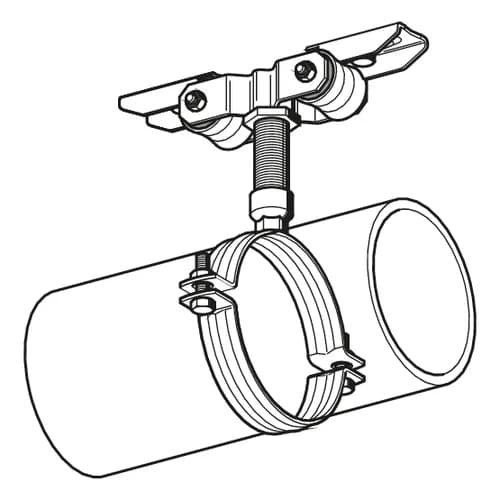

In fixed point constructions as shown in the picture below, the fixed point force is limited by the permissible bending moment of the threaded tube. (For load chart see "Installation Guideline").
Software
This product is available in the following software.
Installation
For soundproof single point installations and for fixed points we recommend to connect the SDE 2-FP 1 to the centric thread connection of the Stabil D-3G.
When using the 1' thread of the clamp, a 1' Locking Nut has to be used.
For mounting on Sikla channels, profiles from type 41/45 are recommended.
