Type 41
Sound Absorption Element SDE 41
Group: 1610
Sound Absorption Element for use with Sikla Channels in ducting systems
uitable for sound proof requirements according to DIN 4109
Overview of Types
General Information

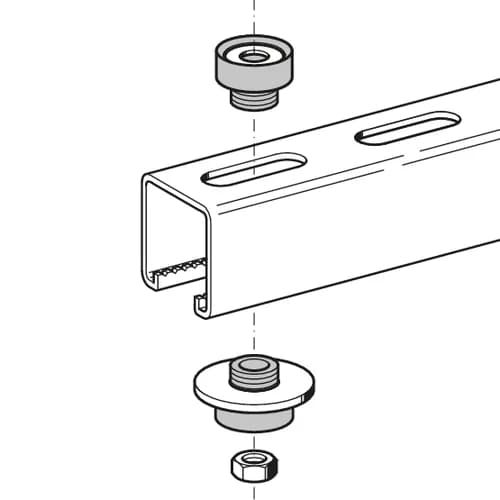

Sound Absorption Element for use in combination with Sikla Channels in ducting systems (suitable also for sound proof requirements according to DIN 4109).
Technical specifications
Max. temperature | 110 °C |
Min. temperature | -50 °C |
Fire Performance | B2 according to DIN 4102 |
Hardness | 50°+/-5° Shore |
Material insulation body | TPE |
Load range
Type | -VX,perm. | VX,perm. |
SDE TYP 41 | 0,30 kN | 0,30 kN |
