Type 27

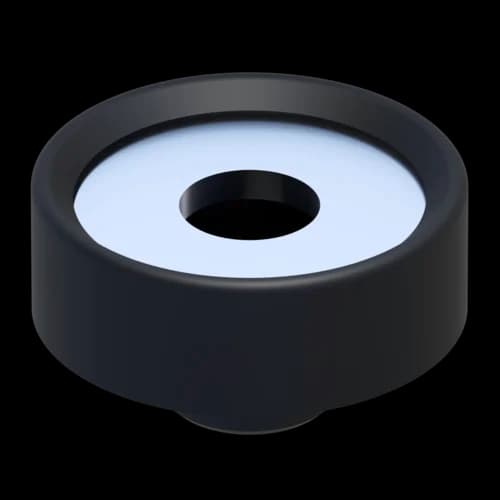

Sound Absorption Unit SDE 27
Group: 2712
Sound Absorption Unit for use with Sikla Channels MS 27 in ducting systems according to DIN 4109
Geometry ensures reliable sound absorption between channel and suspension
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Type 27
Group: 2712
Sound Absorption Unit for use with Sikla Channels MS 27 in ducting systems according to DIN 4109
Geometry ensures reliable sound absorption between channel and suspension

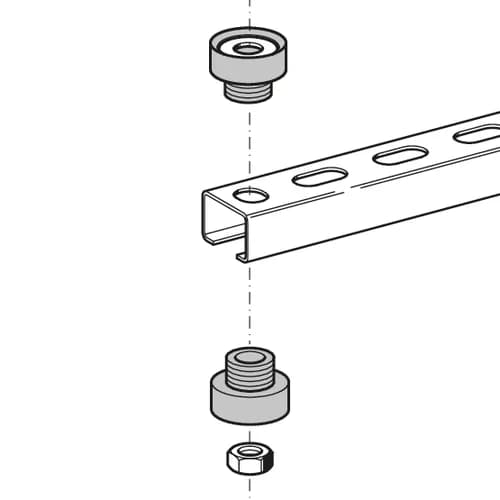

Clamp the Sound Absorption Unit into the round hole of the channel back and into the channel opening. Thread to be pulled through and contered afterwards.
Info | Type | Weight | Quantity | Part number | |
| SDE TYP 27 | 0,01 kg/pcs. | 100 pcs. | 197973 | ||
Sound Absorption Unit to be used in combination with Sikla Channels MS 27 in ducting systems (respecting sound proof demands according to DIN 4109). The geometry of this element reliably secures sound absorption between channel and suspension.
Certification
Max. temperature | 110 °C |
Min. temperature | -50 °C |
Fire Performance | Class B2 according to DIN 4102 |
Hardness | 50°+/-5° Shore |
Isolating element material | TPE |
Connecting element material | steel |
Corrosion protection class | C2 |
Type | -VX,perm. | VX,perm. |
SDE TYP 27 | 0,30 kN | 0,30 kN |
