300-200
Support Bracket WK 300/200
Group: 1326
Part number 118046
May be used for wall, floor and overhead pipe installation
Versatile mounting options through combination with channel

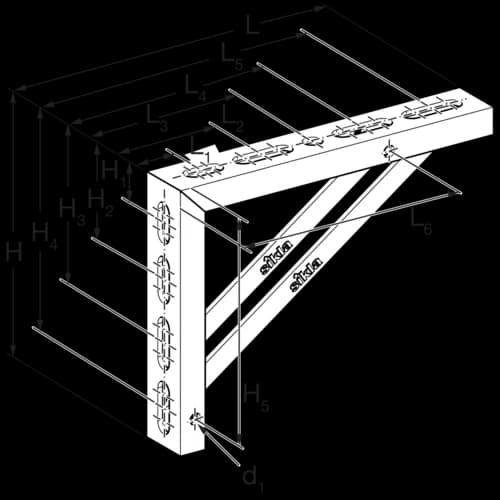

Technical Data
b | 17 mm |
d | 17 mm |
d1 | 10,5 mm |
H | 240 mm |
H1 | 38 mm |
H2 | 89,5 mm |
H3 | 147 mm |
H4 | 205 mm |
H5 | 210 mm |
L | 315 mm |
L1 | 40 mm |
L2 | 100 mm |
L3 | 150 mm |
L4 | 200 mm |
L5 | 270 mm |
L6 | 210 mm |
For load values, see additional documents.
Technical specifications
Permissible Tension σ{zul} | 160,00 N/mm² |
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Documents
Datasheets / Loads
- Angle Bracket WK - Sikla Product Details (300-200)
PDF (0.23MB)
