Group: 1330
Part number 191765

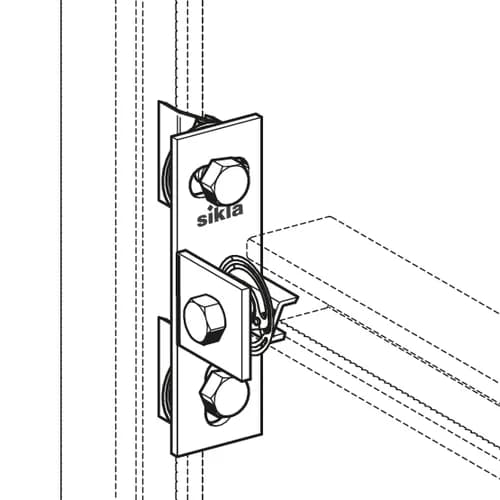

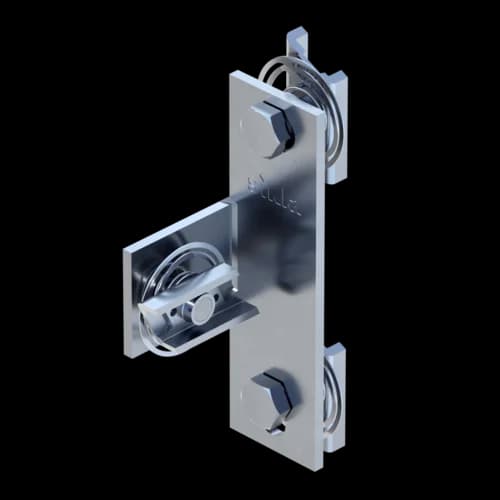

Connecting element for cross bars between two channels
Two T-Brackets are required per cross bar

B | 40 mm |
b | 12,5 mm |
H | 135 mm |
H1 | 107 mm |
L | 51 mm |
L1 | 15 mm |
lz | 8 mm |
t | 4 mm |
Completely pre-assembled.
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Per cross bar always two T-Brackets have to be used.
For channels 41/21 - 41/52
Certification
