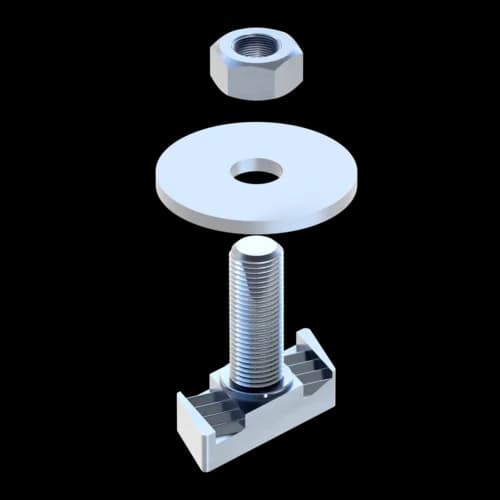

T-Head Bolt TBO HZ41 M10 X 35 A4

Group: 1707

Part number 111457

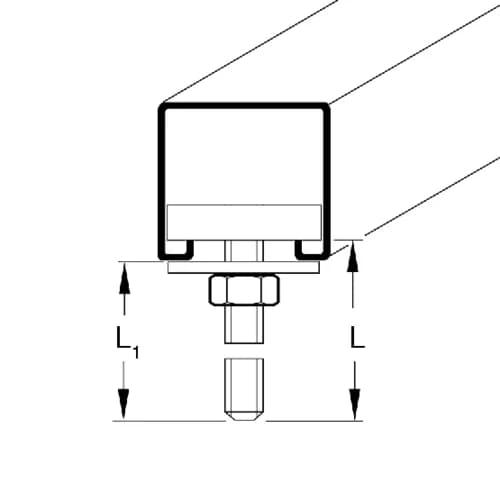

To be used with Channels MS 41 ss

Technical Data

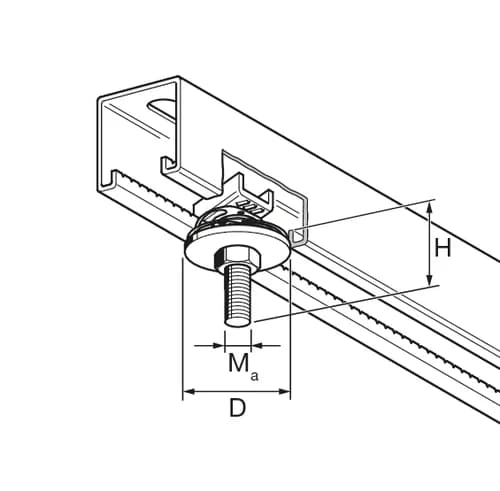

H	43 mm
M_a	M10

V_X,perm.	3,40 kN
-V_Z,perm.	5,80 kN

Permissible bending moment M_b,perm.

10 Nm

The permissible load capacities of the channels are to be respected.

Material base body	Stainless Steel A4
Material connecting element	A4-50
Class	A4-50
Corossion class	CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2)

Certification
