Type M16

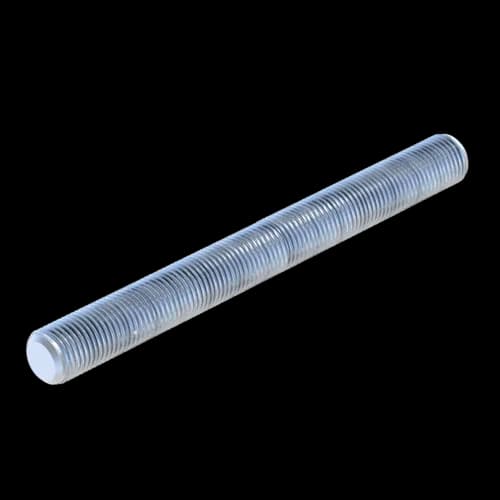

Threaded Rod GST M16 2M DIN 976 4.8
Group: 1317
Part number 142720
Versatile connecting element for fastening and mounting in technical building equipment and plant engineering
Allows flexible length adjustments
Commonly used with pipe clamps, brackets or support systems
Technical Data
Load range
-VZ,perm. | 33,80 kN |
Resistance torque Wy | 0,29 cm³ |
Moment of inertia Iy | 0,21 cm^4 |
Technical specifications
Permissible Tension σ{zul} | 160,00 N/mm² |
Material base body | steel |
Class | 4.8 |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Documents
Datasheets / Loads
- Loads – Threaded Stud GST
PDF (0.12MB)
