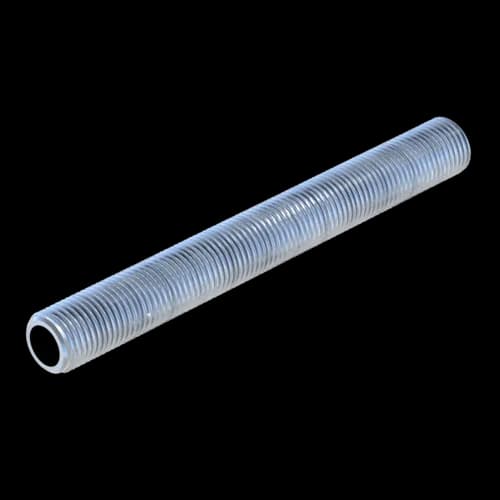

Threaded Tube GR 3/4'' 2M A4
Group: 1709
Part number 170356
Serves as a direct connecting element between Mounting Plate ss and stainless steel pipe clamp
Can be used as a support rod in combination with Universal Joints
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: 1709
Part number 170356
Serves as a direct connecting element between Mounting Plate ss and stainless steel pipe clamp
Can be used as a support rod in combination with Universal Joints
Standard length 2m. Shorter pre-cut parts available on request.
Elastic modulus Wy | 0,80 cm³ |
Second moment of area Iy | 1,07 cm^4 |
Primary element material | Stainless Steel A4 |
Corrosion protection class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Thread according to DIN EN ISO 228
Certification
