TWAV
Wall Adapter Plate Connection Set TWAV HCP
Group: A627

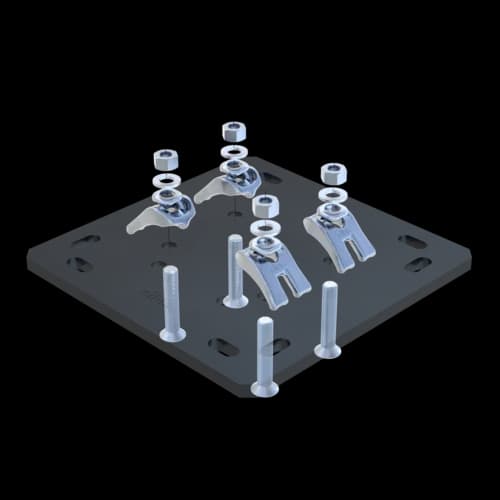

Mounting kit for installing the Wall Adapter Plate TWA
Overview of Types
General Information
The wall adapter plate serves as a base plate for the connection of a steel beam of the Simotec beam systems 100 and 120 to a concrete wall.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VZ,perm. | VZ,perm. |
TWAV HCP | 12,00 kN | 12,00 kN | 12,00 kN | 12,00 kN |
The specified Shear force load capacity relate to the worst case with flange thicknesses 30 mm (M12) as well as a coefficient of static friction µ(adhesion) = 0.20. A possibly operating tensile force F(z) isn't included.
Please consider max loads of anchors.
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Software
This product is available in the following software.
Installation
The four countersunk screws of the connecting parts set are inserted into the countersunk holes.The panel is then attached to the steel beam by beam clips, washer and nuts (included in the connecting parts set) to the steel beam. The wall adapter plate is then fixed to the concrete wall with four anchors. The anchors must be ordered separately and selected depending on the substrate.
Connection to flange width: 100/120 mm
Tightening torque MA [Nm] / plus revolution 60/90°
