TCS 41

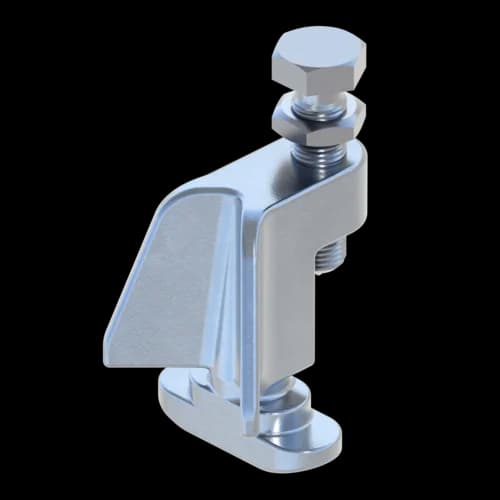

Beam Clamp TCS 41
Group: 1337
Connection of Sikla Channel MS 41 directly to steel beams
No obstruction of the channel opening
Overview of Types
General Information
The Beam Clamp 41 allows for a direct connection of Sikla 41mm slotted strut channel to beam without having this obstruction. In order to achieve this, the foot of the Beam Clamp must be inserted into the slot on the back of the channel.
Technical specifications
Material base body | cast steel |
Material connecting element | steel |
Class | 8.8 |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
TCS 41 | 4,00 kN |
The nominal loads indicated apply to new Beam Clamps fixed to undamaged beam flanges only.
Software
This product is available in the following software.
Installation

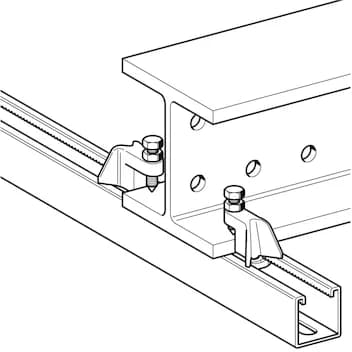

Insert the foot of the Beam Clamp into the slot on the back of the channel, twist by 90° and push it against the beam's flange. First tighten bolt of Beam Clamp (hand-tight), then tighten further with 1 1/2 turns. The sharpened tip of the bolt will dent the beam thus providing a high level of safety. At last tighten locking nut.
Every channel (statically determined) has to be fixed at least twice.
Clamping range on parallel flange: 20 mm
