STA F 100 - 80-E 45°
End Support STA-E F100-F 80 45° HCP
Group: A822
Part number 406002
End Support can be used as a support and stiffening element at 45°
Suitable for use with Beam Sections F 100

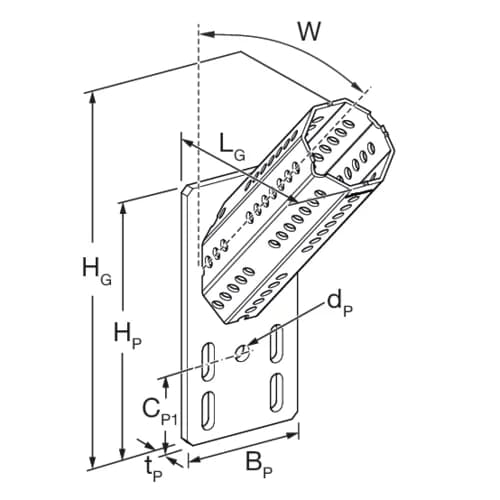

Technical Data
BP | 100 mm |
CP1 | 65 mm |
dP | 14 mm |
HG | 317.5 mm |
HP | 210 mm |
LG | 181 mm |
tP | 8 mm |
W | 45° |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Installation
Depending on the situation on site there are two options to use this product:

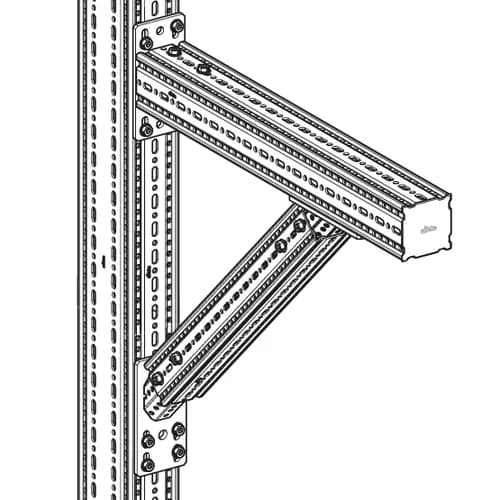

a) Connection within the siFramo system by connecting with 4 FLS screws to each beam section F80.

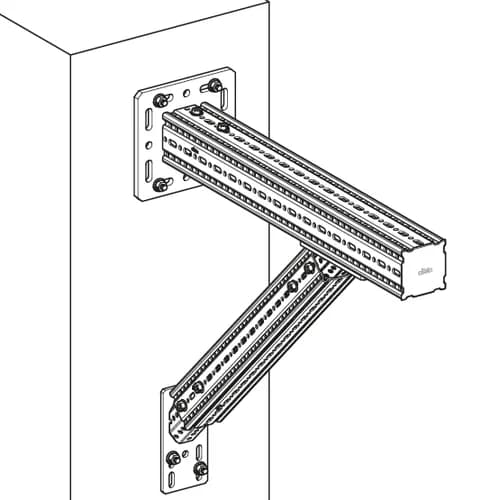

b) Connection to building fabric by using 2 suitable wall anchors in diagonal configuration.
Configuration: Base plate welded to Octagon F 80
