From DN 100

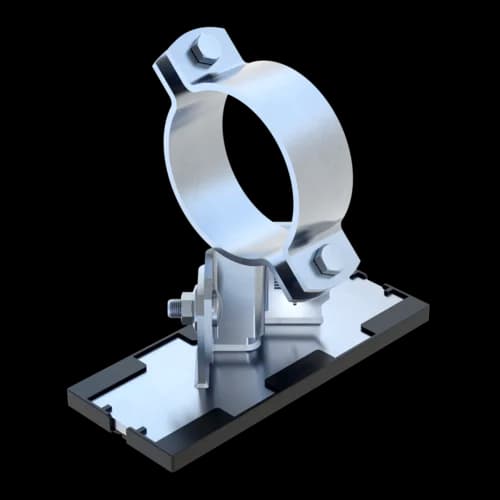

Pipe Shoe LA-HV 90 HCP
Group: A731
Höhenverstellbares Loslager mit Zahnraster in 2,5 mm-Schritten, Auslieferungshöhe 90 mm – ideal für gleitende Rohrhalterungen.
Geeignet für Stahlträger mit einer empfohlenen Mindestflanschbreite von 80 mm.
Flexibel kombinierbar mit weiteren Sikla Bauteilen zur Realisierung von Führungs- oder Festpunkten.
Overview of Types
General Information

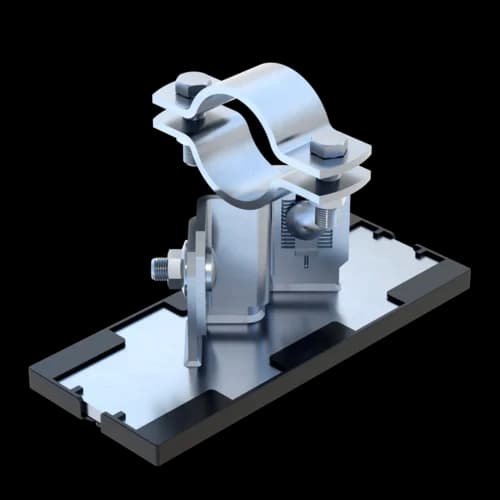

Height-adjustable, single-clamp pipe shoe with a delivery height of 90 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.
Certification
Technical specifications
Max. temperature | 300 °C |
Min. temperature | -20 °C |
max. temperature sliding element | 130 °C |
min. temperature sliding element | -20 °C |
Friction coefficient µ static Pipe shoe foot (without sliding plate) / siFramo and siMotec | 0,3 |
Friction coefficient µ static Pipe shoe foot (with sliding plate) / siFramo and siMotec | 0,2 |
Material base body | steel |
Material sliding element | PA 6.0 |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Installation
| Type | Height H as delivered [mm] | Height H Range [mm] |
|---|---|---|
| HV 90 | 90 | 88,5 - 113,5 |
Tightening torque screw connections
| Clamping bolts | Tightening torque [Nm] | Height adjustment | Tightening torque [Nm] |
|---|---|---|---|
| DN 15 - 40 | 40 | Bolts in the bar | 80 |
| DN 50 - 150 | 50 | Bolts in the bar | 80 |
