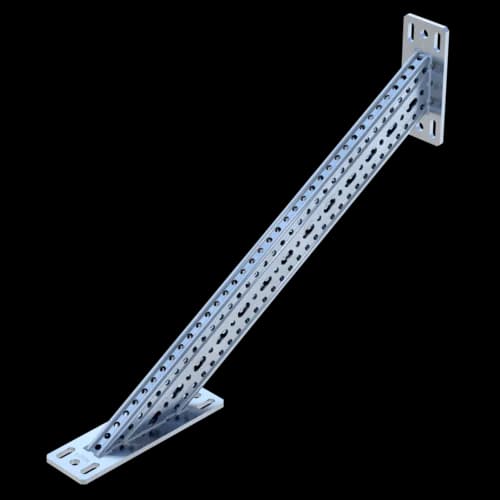

Bracing Arm SKO F 80 HCP
Group: A423
Part number 117152

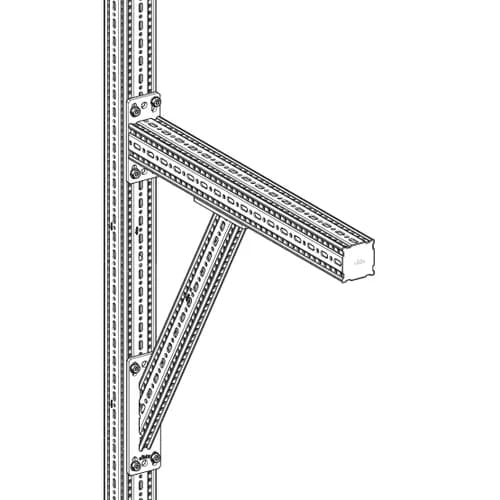

Bracing arm for reinforcement of frames made from Beam Section TP F 80 and/or Cantilever Bracket AK F 80
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: A423
Part number 117152
Bracing arm for reinforcement of frames made from Beam Section TP F 80 and/or Cantilever Bracket AK F 80
BP | 80 mm |
bP | 11 mm |
dP | 14 mm |
HG | 438 mm |
HP | 265 mm |
IZP | 20 mm |
LG | 719 mm |
tP | 8 mm |
W | 30° |
The specified load values are design loads Rd and include a partial safety factor γM2 = 1.25 (DIN EN 1993-1-8:2025-04, Table 4.1)
A partial safety factor of γG = 1.35 (DIN EN 1990:2021-10, Table A1.2(B)) must be taken into account for permanent loads.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
With 2 x 4 Self Forming Screw FLS when used inside a corner of two F 80 size box-sections.
With 4 x Self Forming Screw FLS and 2 x suitable M12 wall anchors/fixings when used to connect between one F 80 size box-section and the building structure.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
