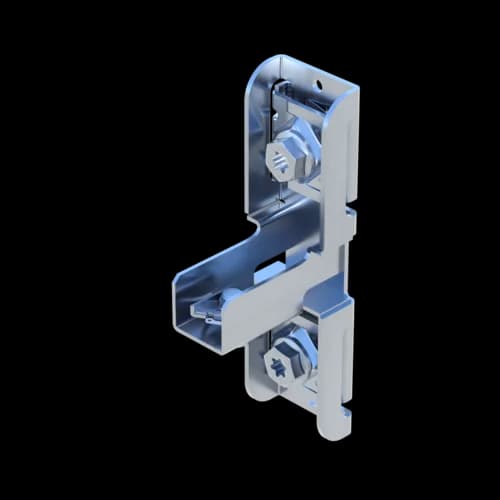

SA PRO 46-27

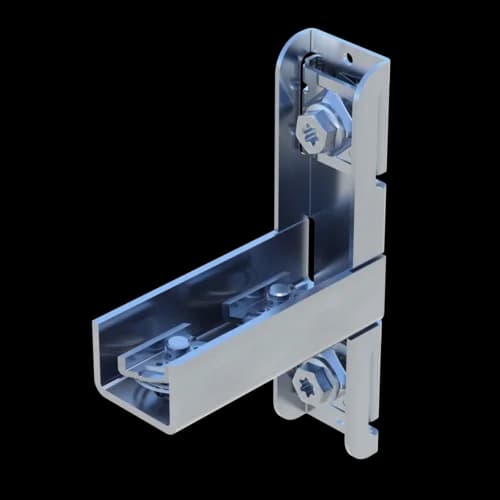

SA PRO 46-41
Channel Adapter SA PRO 46 HCP
Group: B105

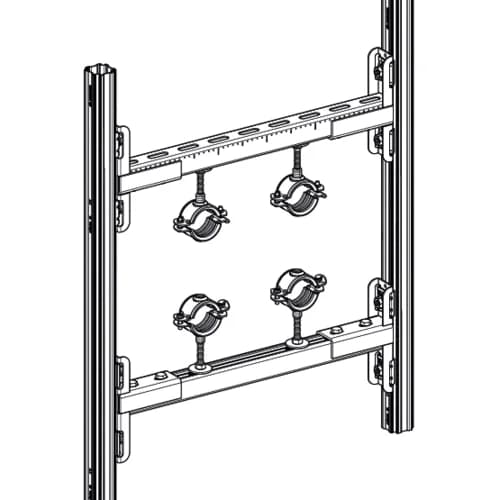

For integrating lighter constructions within the siMetrix system
Enables profile transition from siMetrix Profile PRO 46 to Pressix CC 41 and 27 channel systems
Overview of Types
General Information
For integrating lighter constructions within the siMetrix system. Enables the profile transition from the siMetrix Profile PRO 46 to the Pressix CC 41 and 27 channel systems.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |

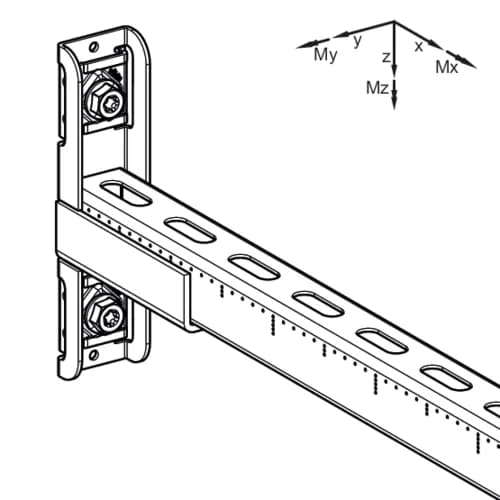

Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
SA PRO 46-27 HCP | 1,08 kN | 1,08 kN | 2,91 kN | 2,91 kN | 0,83 kN | 0,83 kN |
SA PRO 46-41 HCP | 2,89 kN | 2,89 kN | 1,15 kN | 1,15 kN | 0,83 kN | 0,83 kN |
Type | -MY,perm. | MY,perm. | -MZ,perm. | MZ,perm. |
SA PRO 46-27 HCP | 0,15 kNm | 0,05 kNm | 0,04 kNm | 0,04 kNm |
SA PRO 46-41 HCP | 0,44 kNm | 0,33 kNm | 0,16 kNm | 0,16 kNm |
Software
This product is available in the following software.
Installation
Hook the base plate of the channel adapter into a groove on the side of the profile, press the lock on the opposite side and tighten the screws. Then insert the channel, press it in and tighten it.
Configuration: Base plate welded to U-section
Required tool: T50 Bit or 17 mm (AF) Socket Bit
Tightening torque:
On siMetrix profile: 20 Nm
On siConnect speed nuts SA PRO 46-27: 10 Nm
On siConnect speed nuts SA PRO 46-41: 40 Nm
