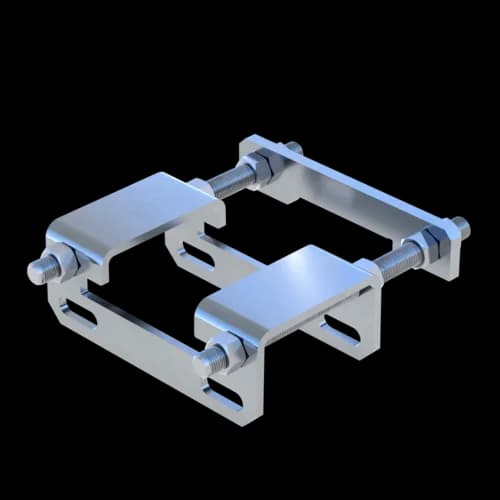

Fixed Point Bracket XW F 80 HCP
Group: A705
Part number 110356
Element for modification of sliding pipe shoes to fixed point pipe shoes on siFramo TP F 80 beam sections

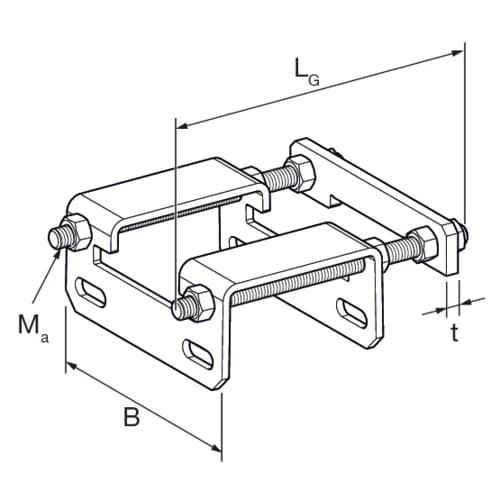

Technical Data
B | 11 mm |
LG | 200 mm |
Ma | M12 |
t | 8 mm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
The slide plate of the Pipe Shoe is disassembled. Connection to Beam Sections TP F 80 and 80/30 means of 4 Self-Forming Screws FLS F.
Axial fixed point forces can only be attained by the professional use of anti-slip protections (e.g. cleats, stoppers). Those have to be planned during the design of the piping and are on the responsibilty of the piping manufacturer.
