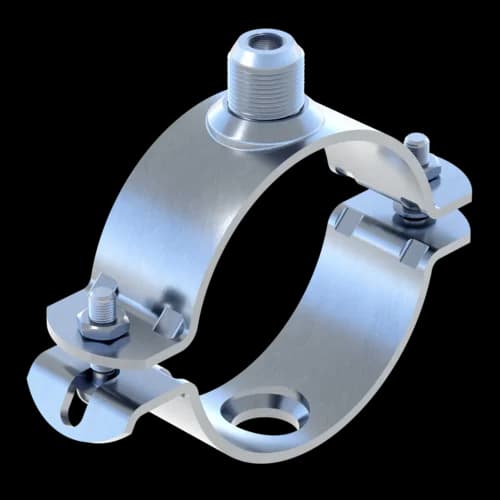

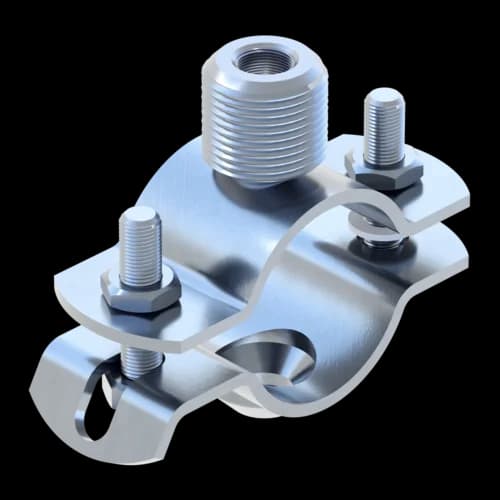

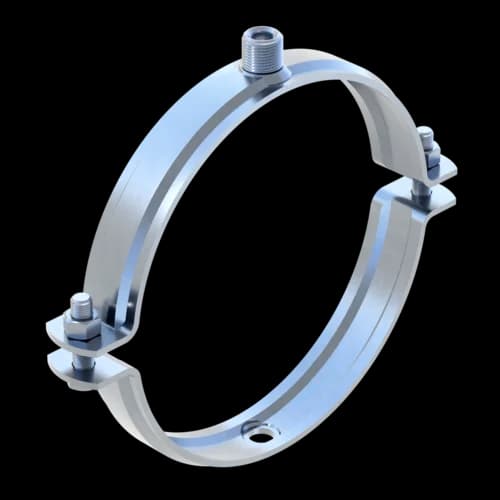

Pipe Clamp STABIL D-3G HCP

Group: 1844

Installation of pipes required for all M&E services

Suitable for ceiling, floor and wall mounting.

Select a Type

Overview of Types

For the installation of pipes required for all M&E services in industrial, residential and public buildings.

Certification

VdS-Approval No. G4920027, FM Approval for sizes between 31 and 173.

Material base body	steel
Material connecting element	steel
Surface	HCP
Corossion class	C4

Type	-V_Z,perm.
STABIL D-3G 10- 14 HCP	2,00 kN

Software

This product is available in the following software.

For FM applications use M10 only.
For VdS applications use M10 only if size is >2' to 4'.

Tightening torques:

Approvals / VdS
