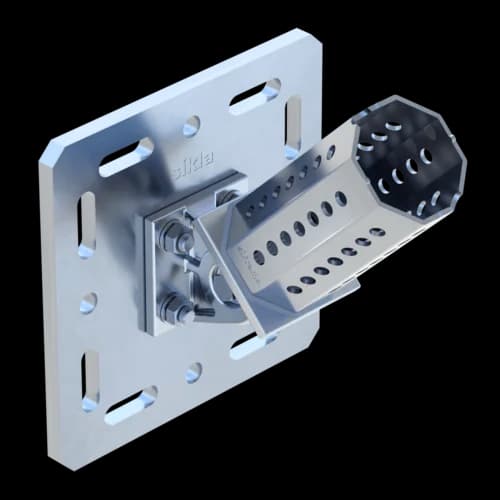

Pivot Joint GE 80/120-F 80 HCP
Group: A437
Part number 115856
Bracing element for single-armed cantilevers with the siFramo F80 support system on steel beams with flange widths between 80 and 300 mm

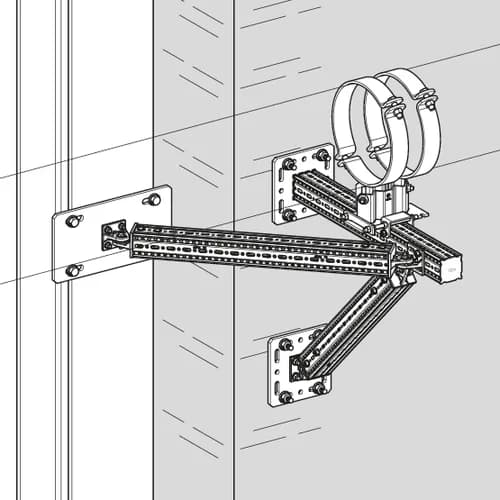

Also suitable for bracing frame structures
Pivot installation possible at angles from 25° to 155°

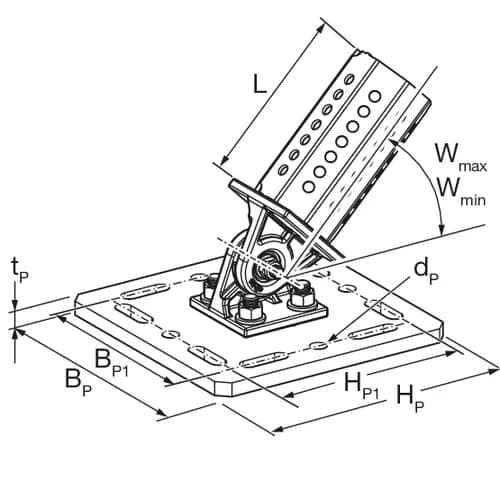

Technical Data
BP | 220 mm |
BP1 | 170 mm |
dP | 14 mm |
HP | 220 mm |
HP1 | 170 mm |
L | 140 mm |
tP | 12 mm |
Wmin | 25° |
Wmax | 155° |
Pivot Joint GE F - ST F 80 with pre-attached base plate
Load range
-VX,perm. | 13,70 kN |
VX,perm. | 13,70 kN |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
Attachment of the Joints to steel structure by means of Assembly Set MS 5P M12 S while connecting the base plate. From Type 161/200 on an Assembly Set MS 5P M16 S is used. Another option is to fix the Joint to concrete walls by means of 4 heavy-duty anchors.
The support profile TP F 80 plugged onto the octagon is attached by means of 4 Self Forming Screws.
After installation at the desired angle the screws have to be tightened with 40 Nm.
By loosening the screw connection between Joint and Joining Plate it is possible to rotate the Joint by 90° and to use it for a cross member then (see figure).

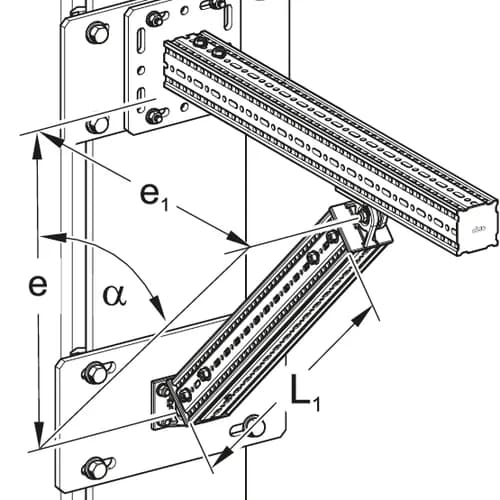

Angle: 25° - 155°
