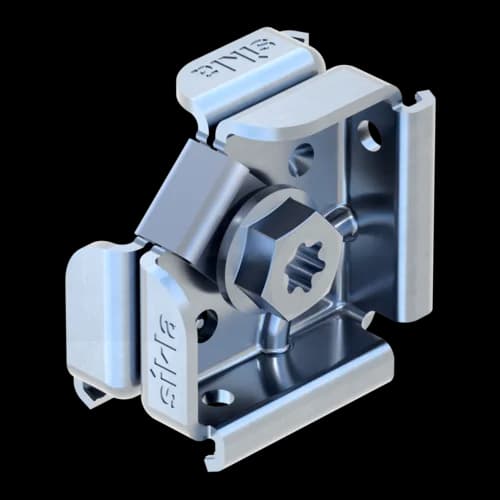

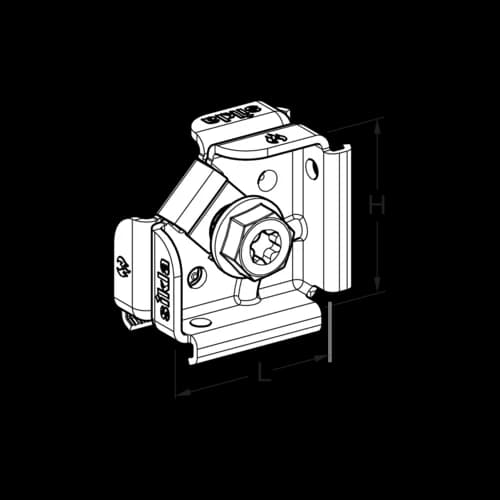

Connector CN 46 HCP
Group: B103
Part number 803545

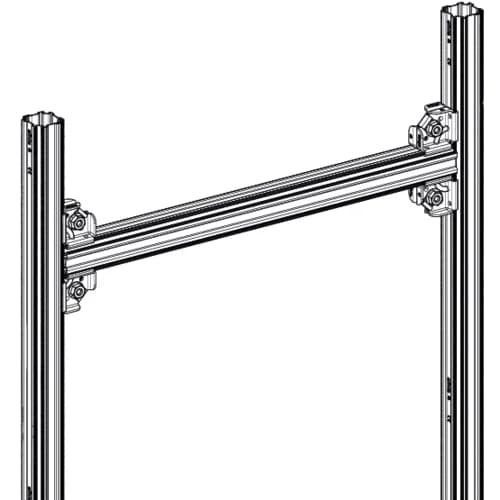

For creating crossbars or cantilevers on the Profile PRO 46.
Technical Data

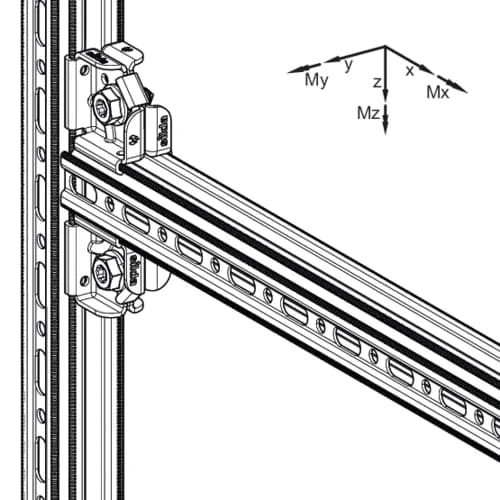

Load range
-VX,perm. | 0,72 kN |
VX,perm. | 0,72 kN |
-VY,perm. | 0,83 kN |
VY,perm. | 0,83 kN |
-VZ,perm. | 0,72 kN |
VZ,perm. | 0,72 kN |
-MY,perm. | 0,09 kNm |
MY,perm. | 0,12 kNm |
-MZ,perm. | 0,02 kNm |
MZ,perm. | 0,02 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
CAD
Installation
Press the connector onto both adjoining profiles and secure by tightening the screw.
Depending on the load, one or two brackets can be used per connection. For cantilevers, connectors must always be used in pairs.
Required tool: T50 Bit or 17 mm (AF) Socket Bit
Tightening torque: 30 Nm
Documents
Guidelines / Static
- Static Guideline - siMetrix
PDF (1.91MB)
