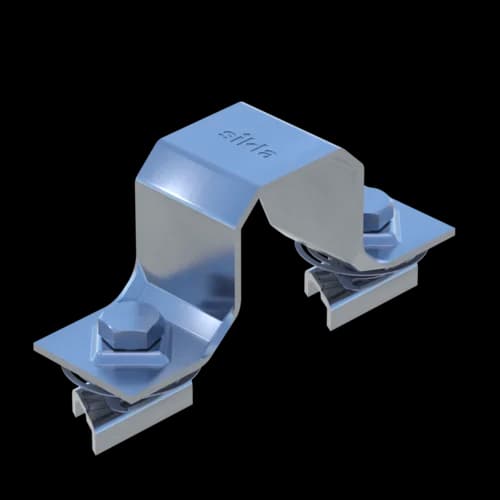

Profile Holder MPH MS 41 - 46 HCP
Group: B106
Part number 803867
Implementation of a cross-connection between the Sikla Channel with a rail width of 41 mm and the siMetrix PRO 46 profile
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: B106
Part number 803867
Implementation of a cross-connection between the Sikla Channel with a rail width of 41 mm and the siMetrix PRO 46 profile
B1 | 132 mm |
B3 | 94 mm |
d | 12 mm |
L | 40 mm |
t | 2.5 mm |
Pre-assembled in a set with 2 x Speed Nuts
-VX,perm. | 0,14 kN |
VX,perm. | 0,14 kN |
-VY,perm. | 1,97 kN |
VY,perm. | 1,97 kN |
-VZ,perm. | 12,00 kN |
VZ,perm. | 12,00 kN |
-MY,perm. | 0,06 kNm |
MY,perm. | 0,06 kNm |
-MZ,perm. | 0,08 kNm |
MZ,perm. | 0,08 kNm |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |

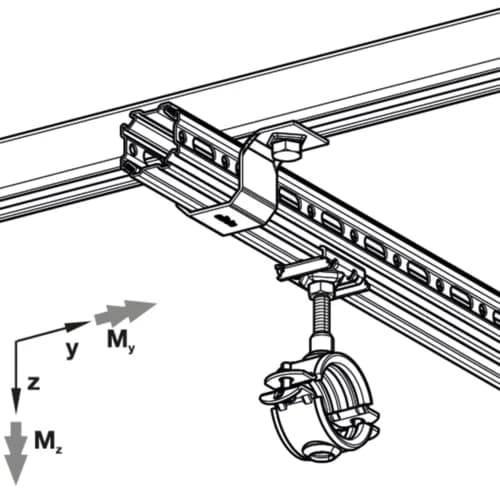

The combination of the Profile PRO 46 and Channel MS 41 is made using speed nuts.
Certification
